How to Make a Lawn Mower Discharge Chute
Learn how to make lawn mower discharge chute with a safe, robust design. This step-by-step guide covers materials, fabrication, mounting, and maintenance for homeowners and DIY enthusiasts.
Ready to customize how grass clippings exit your mower? This guide shows how to make lawn mower discharge chute that safely directs clippings, with practical material options, sizing tips, and mounting steps. You'll learn design considerations, safety practices, and how to adapt common chute features to fit many mower models. By following these steps, you can improve airflow and minimize clogging while maintaining operator safety.
Why a Custom Discharge Chute Might Be Needed
Grass clippings tend to blow unpredictably from stock chutes, especially on uneven terrain or when mower decks are older. According to Mower Help, a purpose-built discharge chute can improve airflow, reduce clumping, and direct material away from the operator and sensitive parts. If your mower’s stock chute is cracked, misaligned, or not compatible with a bagging system, learning how to make lawn mower discharge chute offers a practical way to restore performance without buying a new deck. This section walks you through when to consider a customized chute, the typical limitations of factory parts, and the safety checks you should perform before cutting metal or plastic.
Understanding Standard Discharge Chutes and Limitations
Most walk-behind mowers use a single-piece discharge chute that attaches to the deck outlet. Over time, wear can widen gaps, bending can change the dispersion pattern, and some models lack a direct connection to bagging components. A DIY discharge chute can address these issues by providing an adjustable outlet angle, a reinforced mounting point, and a compatible interface for existing baggers. However, modifications should respect the mower’s safety interlocks and avoid obstructing cooling fins or the operator’s line of sight. Evaluate the current fit, including outlet diameter, mounting holes, and clearance to the blade path, before designing a replacement.
Materials, Sizing, and Compatibility Considerations
Start by determining the outlet diameter and the width needed for your chosen material. Aluminum or steel sheet can be formed into a curved channel, while high-strength plastic panels offer lighter weight and corrosion resistance. Choose thickness that won’t deform under clippings impact. Provide a mounting flange or tabs that align with existing deck holes, and plan for a seal or gasket to minimize blow-by and noise. If you’re unsure about fit, keep an extra adapter plate on hand to tweak the interface with your mower model.
Fabrication Methods: Metal vs Plastic
Metal chutes deliver durability and ongoing resistance to heat and weather, but they require cutting, bending, and edge finishing. Plastic chutes are lighter and easier to shape but can wear faster in gritty grass conditions. Your choice should consider local climate, frequency of mowing, and the mower’s deck design. For metal, use a rust-inhibiting coating and deburr edges; for plastic, avoid sharp corners and create smooth radii to prevent turf damage.
Mounting, Sealing, and Safety Best Practices
Create a stable mounting plan that distributes stress across multiple fasteners rather than a single point. Drill clean, aligned holes, deburr edges, and use stainless or galvanized hardware to resist corrosion. Seal joints with silicone or weather-rated gasket material to reduce vibration, noise, and debris ingress. Always disconnect the spark plug wire (gas mowers) or unplug power (electric mowers) before handling the deck, and perform a test run in a safe area with no grass clippings to verify clearance and airflow.
Common Pitfalls and How to Avoid Them
Failing to account for blade path can cause clogging or safety hazards. Improperly sized outlets can increase backsplash and sprinkle clippings toward the operator. Skipping a gasket or seal invites leaks and rattling. Not test-fitting before a real mowing session can waste time; perform a controlled bench test first, then a slow, short run on a paved area.
Maintenance, Repairs, and Replacement Guidelines
Inspect the discharge chute regularly for cracks, corrosion, or loose fasteners. Clean out any grass build-up after use and re-seal joints if you notice leaks. If the chute shows significant wear, consider replacing it rather than performing a risky repair. Keeping a spare adapter plate and hardware on hand makes future tweaks faster.
Tools & Materials
- Sheet metal (steel or aluminum) or durable plastic panel(Choose 18–20 gauge steel or 1/8 inch plastic as a starting point; thicker material lasts longer.)
- Measuring tape(Measure outlet diameter and deck clearance accurately.)
- Marker or scribe(Mark cut lines and hole positions precisely.)
- Tin snips or metal shears(Cut metal cleanly; use plastic-compatible blades for plastic panels.)
- Jigsaw or hacksaw(Cut curves and intricate shapes; ensure smooth edges.)
- Drill and bits(Drill mounting holes and any pilot holes for fasteners.)
- Rivets or screws and nuts(Attach the chute securely; stainless hardware is preferred.)
- Clamp(s)(Hold pieces steady during cutting and drilling.)
- Protective gear(Safety glasses, gloves, and hearing protection.)
- Sealant or gasket material(Seal joints to reduce leaks and vibration.)

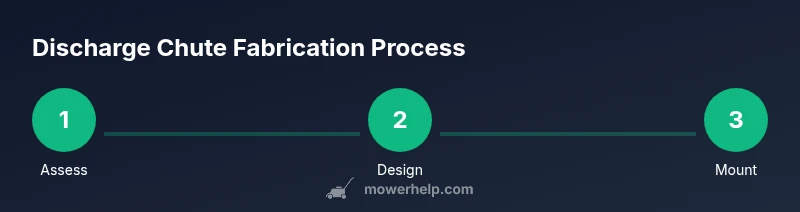

Steps
Estimated time: 2-4 hours
- 1
Assess mower compatibility and safety
Power down the mower, disconnect the spark plug wire (gas) or unplug the battery (electric), and inspect the deck for clearances. Confirm outlet diameter and whether the current chute interfaces with any bagging attachment. This initial check helps prevent wasted effort on an incompatible design.
Tip: Always secure the mower and work in a clean, well-lit area. - 2
Measure inlet/outlet and select material
Take precise measurements of the deck outlet and the desired outlet width for your new chute. Select material that balances weight, strength, and durability. If unsure, choose a slightly larger outlet to allow for adjustment while keeping clippings from escaping toward the operator.
Tip: Double-check hole pattern alignment with the deck’s existing mounting points. - 3
Design the bend pattern and mounting interface
Sketch how the chute will bend from the deck to the intended discharge direction. Plan a mounting flange or tabs that align with deck holes and allow for secure attachment. Include a gasket surface to minimize vibration and leaks.
Tip: Avoid sharp internal corners to reduce clipping snag and wear. - 4
Cut and deburr the material
Cut the sheet metal or plastic along the marked outline, then deburr edges to remove sharp fragments. Create any necessary holes for mounting hardware with clean edges to prevent cracking or tearing.
Tip: Use protective gear and clamp pieces firmly during cutting. - 5
Form the chute and prepare attachment points
Carefully bend or shape the chute to the planned profile using a bending tool or heat-forming method for plastics. Prepare all mounting holes and ensure flange edges are clean and ready for fasteners.
Tip: Test-fit pieces before final assembly to catch alignment issues early. - 6
Mount, seal, and test
Attach the chute to the deck using the chosen fasteners, apply gasket material at joints, and snug hardware evenly. Run the mower in a safe, debris-free area to verify airflow and absence of clogs or rubbing against blades.
Tip: Never mow with a loose or unsecured chute; vibration can loosen fasteners.
Got Questions?
Is it safe to DIY a discharge chute modification?
DIY modifications can be safe if you follow proper safety procedures, disconnect power during work, and carefully test the fit. If in doubt, consult a professional or the mower manufacturer.
DIY is possible if you follow safety steps and test in a controlled way.
Will modifying the discharge chute affect my mower's warranty?
Modifications can affect warranties; check the manufacturer’s terms. If your mower is still under warranty, contact support before making changes.
Check the warranty terms before any modification.
What materials work best for a DIY discharge chute?
Aluminum or steel sheet metal and high-strength plastic panels are common. Choose thickness that resists wear and suits your mower model.
Metal is durable; plastic is lighter but may wear faster.
Do I need adapters to fit a new chute to a bagging system?
Yes, adapters or connectors may be needed to link the chute to your bagger. Ensure a tight seal and proper airflow.
You may need an adapter to connect to the bagging system.
How long does a DIY discharge chute project typically take?
With basic tools and planning, expect 2–4 hours for a simple version, longer if custom fittings are required.
Most DIY projects take a few hours depending on fit and materials.
Watch Video
The Essentials
- Plan around your mower model and measured clearances.
- Choose durable materials and secure mounting for safety.
- Test thoroughly in a controlled area before mowing.
- Regularly inspect and maintain the chute for longevity.
