How to Make Lawn Mower Ramps for Truck: A Safe DIY Guide

Assessing Your Truck Bed and Ramp Needs

Before you cut wood or weld steel, map out the basic constraints of your vehicle and the mower you plan to load. Start by measuring the bed height from the ground to the bed surface, and note any obstructions like taillights or bumper lips. Determine the maximum load the truck bed can safely carry and compare it to the mower’s weight. According to Mower Help, safe ramp design begins with accurate measurements and a clear plan for where the ramp will rest when the tailgate is closed. This ensures you don’t oversize the ramp or end up with a slope that’s too steep to push the mower up or down without strain. You’ll also need to account for the mower’s width, so the ramp width is wide enough for stable loading and unloading. Consider any clearance issues with bed rails or tie-down points, and decide whether you’ll mount the ramps permanently or use removable brackets. A well-planned start saves time and reduces the risk of a dangerous setup.

Taking measurements twice and marking cut lines clearly on your chosen material helps prevent rework later. If you’re unsure about weight-bearing capacity, err on the side of extra strength and select thicker decking and more substantial stringers. This phase is a foundation: your ramp must be predictable, level, and able to support the mower without flexing or shifting during loading. A precise plan also makes it easier to source the right hardware and ensure every joint is secured with corrosion-resistant fasteners.

Safety First: Slopes, Angles, and Non-Slip Surfaces

A safe ramp minimizes the risk of tipping, wheel slip, and sudden launches off the bed. Start with the slope: aim for a gentle incline that your mower can manage without you having to push with excessive force. A common guideline is a slope of about 1:4 or shallower for most walk-behind mowers; steeper slopes dramatically increase effort and the chance of losing control. For heavier or zero-turn mowers, you may want a shallower angle or a longer ramp to reduce stress on your back and the mower’s drivetrain. In addition to slope, ensure the ramp surface has good traction. Apply a non-slip grip tape, coarse sandpaper, or a textured coating to every decking surface. Keep edges rounded to prevent catching, and add small toe boards or lips at the ramp ends to guide wheels and prevent the mower from slipping off the sides. Remember: ramps are load-bearing devices, so any surface finish should be durable and resistant to weathering.

According to Mower Help, incorporating a non-slip surface is essential for year-round use, especially in wet or dew-covered conditions. Also verify that the ramp width comfortably accommodates the mower’s tires and skids. A width that’s too tight forces the mower into contact with ramp edges, increasing the risk of damage and instability. Regularly check for wear on grip surfaces, and replace them if they become slick.

Materials and Tools: What You’ll Need

The right materials and tools set the tone for a successful build. For a wooden ramp, exterior-grade plywood (3/4 inch minimum) or solid lumber like 2x6s can form a strong deck and frame. You’ll need long enough stringers to span the truck bed and additional cross-members for stiffness. Fasteners should be heavy-duty, corrosion-resistant screws or carriage bolts, with washers to distribute load. Don’t forget a lip or edging, non-slip surface material, and optional rails for edge protection. Tools typically include a table saw or Circular saw, drill/driver, screwdriver bits, measuring tape, square, clamp, and safety gear such as gloves and eye protection. If you prefer metal ramps for extra durability, you’ll substitute steel channels, rust-resistant bolts, and welds. In all cases, plan for attachment hardware compatible with your truck’s bed or hitch system, and keep a spare set of fasteners on hand.

As you select materials, think about weather exposure and maintenance. Wood components should be sealed to resist moisture, while metal parts should be galvanised or powder-coated to prevent rust. The goal is a ramp that stays rigid and functional for many loading cycles.

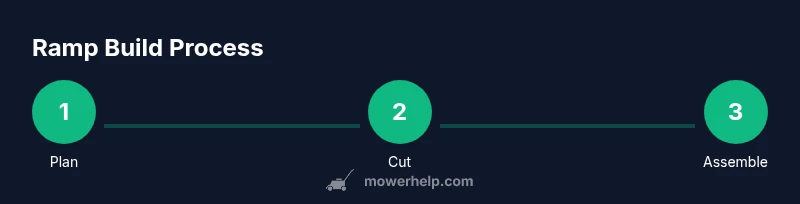

Step 1 – Planning and Measurements

Begin with a detailed plan of the ramp dimensions based on your mower’s width, wheelbase, and the truck bed height. Measure the bed height at several points to identify any variance, which affects ramp length. With those numbers, compute the ramp length needed to reach a sensible slope, and decide on a width that leaves space for wheel clearance and grip. Sketch a cut plan for stringers and decking, marking where cross-braces will go. Label each piece to avoid mistakes during assembly. The plan should also include mounting points and a simple method for securing the ramps when in use.

Tip: Double-check measurements against your mower’s profile by placing a mock-up or cardboard outline on the bed to visualize clearance and alignment before cutting.

Step 2 – Cutting the Frame and Deck

Cut the deck surface and frame members to the exact lengths from your plan. If you’re using plywood, rip panels to the width you want and cut from a single, stable sheet to avoid warping. Cut stringers from solid lumber or use metal supports if you’re aiming for maximum rigidity. Sand rough edges to prevent snags and splinters. Drill pilot holes to reduce wood splitting when driving screws, and use waterproof sealant on all end grains to minimize moisture ingress. As you cut, label parts and set aside hardware in the order you’ll assemble them.

Pro tip: Keep a sharp blade and a stable work surface; a single error in a cut can propagate into misaligned joints later on.

Step 3 – Assembling the Ramp Frame

Assemble the frame on a flat work surface before attaching decking. Start with the outer stringers and attach cross-members at regular intervals for even load distribution. Use wood glue at joints for added strength, then reinforce with screws or bolts. Check squareness frequently with a framing square. If you’re building a hinged ramp, plan the mounting so the hinge line aligns with the truck’s access edge and allows smooth folding for storage.

Pro tip: Use clamps to hold parts as glue cures and set a temporary weight on the deck to test for flex during assembly.

Step 4 – Surface, Traction, and Edge Safety

Apply your non-slip surface to the ramp’s decking and ensure the surface is uniform. If using grip tape, apply it in straight, overlapping strips and trim flush around edges. If you’re painting or sealing the deck, choose a weatherproof product and apply multiple coats per manufacturer directions. Add a small raised lip at the top and bottom edges to guide wheels and prevent the mower from sliding off. Inspect edges for burrs and smooth them with sandpaper.

Pro tip: Dry-fit the mower on a test run to confirm that tire clearance is adequate and that no part of the mower’s handles or skids will rub against the ramp.

Step 5 – Mounting, Securing, and Testing

Secure the ramps to the truck bed or hitch using appropriate anchors such as bolts, brackets, or hitch-mounted supports. If you use brackets, ensure they are rated for outdoor use and match the ramp’s width. Add anti-slip mats or straps to hold the ramp in place during loading and unloading. Before loading the mower, perform a basic stability test with a helper nearby. Load slowly, steering the mower in line with the ramp and using hands to guide along the edge. After a successful test, perform a light load test with a person walking beside the mower to monitor control.

Safety note: Never jump-load a mower onto ramps, and always chock the wheels on the driveway during tests.

Step 6 – Load Testing and Safety Checks

With the mower off the ground, conduct a controlled load test. Start with a lighter object or the mower’s own weight to verify that the ramp remains stable and does not bow or twist. Observe for any signs of movement at joints, fasteners, or mounting points. Confirm that the vehicle’s parking brake is engaged and that the ramp’s footing is secure on the driveway or bed. If you detect any flex or wobble, stop and reinforce joints or anchors before continuing.

Remember: Safety is ongoing. Regularly inspect for loose screws, cracked decking, or rusted anchors before each use and replace parts as necessary.

Step 7 – Maintenance, Longevity, and Common Pitfalls

Finish with a maintenance routine: clean the ramps after use, reseal or repaint exposed wood, and replace worn grip tape at signs of wear. Periodically re-check mounting hardware, cross-braces, and the deck for signs of moisture damage or rot. Common mistakes include underestimating the needed ramp length, using weak fasteners, or failing to secure ramps during loading. A careful, methodical approach reduces the risk of damage to the mower or vehicle.

AUTHORITY SOURCES: For further reading on safety and best practices, see recommended materials from government and university extension sites.

AUTHORITY SOURCES

• OSHA safety guidelines: https://www.osha.gov
• U.S. Department of Transportation safety resources: https://www.nhtsa.gov
• University Extension guidance on loading ramps and tool safety: https://extension.illinois.edu

By following these sources, you’ll ensure your ramp design aligns with widely accepted safety standards and best practices. Mower Help emphasizes the importance of a deliberate, safety-first approach to every DIY project. The Mower Help Team also notes that yearly checks and maintenance improve long-term performance and reduce risk for homeowners.
