Lawn Mower Spark Plug Socket: Size, Use, and Maintenance
A practical, step-by-step guide to choosing and using a lawn mower spark plug socket. Learn sizes, drive types, magnetized vs rubber inserts, safety tips, and maintenance for quick, reliable mower starts.
By the end of this guide, you’ll know how to select and use a lawn mower spark plug socket to safely remove and install spark plugs. You’ll understand common socket sizes (5/8-inch and 13/16-inch hex), drive types, and whether you need magnetized or rubber-insert sockets. With the right tool, maintenance becomes quick and reliable.
What a lawn mower spark plug socket is and why you need one
According to Mower Help, a spark plug socket is a specialized tool designed to fit the hex shape of most lawn mower plugs while safely gripping the plug during removal and installation. For many small engines, the plugs use a 13/16-inch or 5/8-inch hex and a 3/8-inch drive fits common ratchets. A socket with a magnet or a rubber insert helps hold the plug in place as you loosen it without dropping the plug into the engine bay. Using the correct socket reduces the risk of rounding the plug’s hex and minimizes damage to threads. Beyond fit, look for thin walls to reach recessed plugs under the spark plug boot, and a hollow shaft to let you see the plug as it threads out. Understanding these basics saves time and prevents surprise trips to the tool chest. This small but crucial tool is a centerpiece of routine mower maintenance and can dramatically reduce frustration when you service Briggs & Stratton, Tecumseh, or Honda small engines.

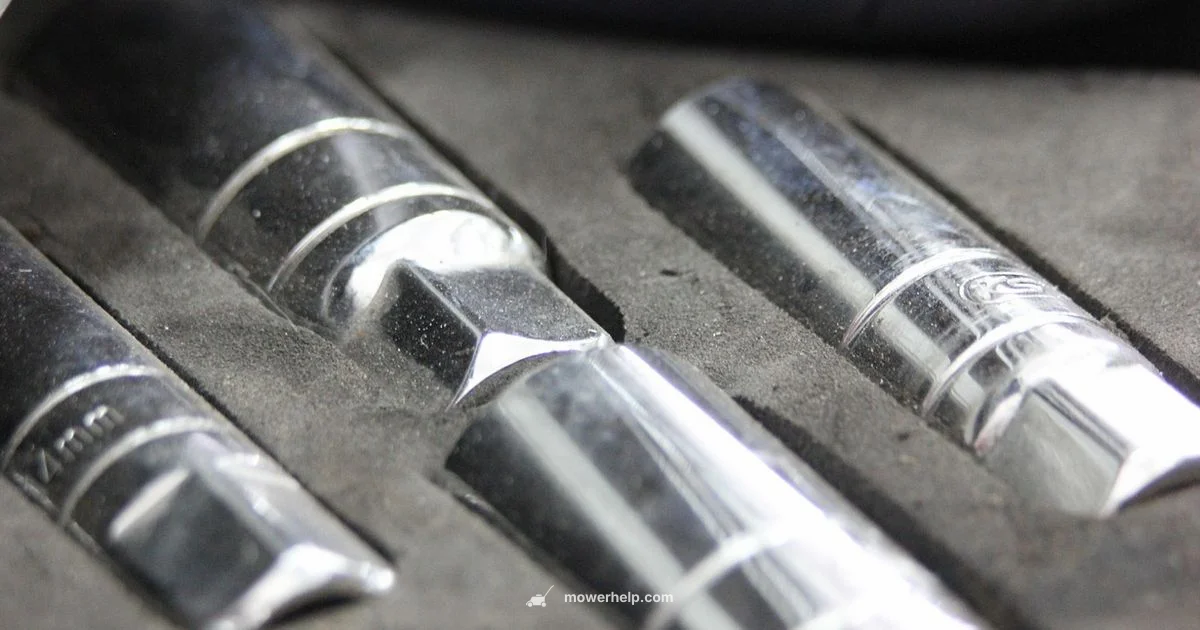

Spark plug socket sizes and types you’ll encounter
Lawn mower spark plug sockets come in a few common hex sizes. The two most frequent are 13/16-inch (about 20.6 mm) and 5/8-inch (about 15.9 mm). The drive size is usually 3/8-inch, though some setups use 1/2-inch drives for extra leverage. Look for a magnetized version to hold the plug as you loosen it, and a rubber insert to cushion the plug and prevent drops. Some premium sockets feature thin-walled construction for tight spaces and a built-in finger notch for alignment. Always check your mower’s owner manual or the spark plug itself to confirm the exact hex size, since a mismatched size can strip the plug or damage the engine’s gasket seal. When in doubt, bring the plug to the hardware store to match the hex and length precisely.
How a spark plug socket differs from other sockets
A spark plug socket is specialized for small, recessed engine plugs. Unlike standard sockets, it often has a rubber insert or magnet to securely grip the plug, a deeper well to accommodate longer plugs, and a thin wall profile to access plugs under boot bosses. Regular sockets may not reach the plug due to space constraints and can slip, causing damage. The key differences are retention method (magnet vs. rubber), depth, and build thickness. For most lawn mowers, a 3/8-inch drive with a 13/16-inch or 5/8-inch hex is the sweet spot, but always verify the plug’s hex and clearance before purchasing. A high-quality spark plug socket will save time and reduce the risk of cross-threading during installation.
Choosing features: magnetized, rubber inserts, depth, and drive size
When selecting a spark plug socket for a lawn mower, prioritize: (1) magnetized vs. rubber inserts based on whether you want one-handed operation or maximum security against dropping the plug, (2) wall thickness for tight spaces under the plug boot, (3) compatible drive size (3/8-inch is most common, with 1/2-inch offering more torque for stubborn plugs), and (4) a shallow or deep depth depending on plug length. Consider a matched extension bar or a short-handled ratchet for maneuverability around mower decks. Finally, confirm the hex size listed on the plug itself—common options are 13/16-inch and 5/8-inch—and ensure the socket fits both the plug and the overall clearance between the cylinder head and any surrounding parts.
Safety considerations when working with spark plugs
Before you touch the spark plug, disconnect the spark plug wire to prevent accidental starts. Work in a well-lit, stable area and wear gloves to protect your hands from sharp edges and hot surfaces. Do not use pliers or adapters to force a plug if it won’t loosen; instead, re-check alignment, switch to the correct socket size, and apply a small amount of penetrating oil if the plug is stubborn (never spray oil near the air intake or carburetor). Keep a clean workspace and keep the plug socket in a secure spot to avoid dropping the plug into the mower’s internals. If your engine deck is wet, dry the area first to prevent slipping or accidental contact with live electrical components.
Maintenance considerations after plug replacement
After installing a new spark plug, ensure it is seated to the mower manufacturer’s torque specification (consult the owner’s manual). If you don’t have the exact torque spec, snug the plug and give it a light turn with caution, avoiding over-tightening which can strip threads. Check the gap on the new plug with a feeler gauge, especially if the plug type differs from the previous one. Reconnect the spark plug wire and perform a short test start in a safe area. If the engine runs rough or misfires, recheck the plug seating and gap. Keep spare plugs in a clean, dry container and label them for your specific mower model to prevent cross-use.
Quick-reference tips for beginners
Keep your spark plug socket in a dedicated tool tray to avoid misplacing it. If you drop the plug, inspect the socket’s rubber insert or magnet for debris that could transfer into the engine. Always remove the wire before work, and verify the plug’s thread condition—cross-threading can lead to expensive repairs. When storing the socket, keep it away from moisture and dirt that can compromise its grip.
Common mistakes and how to avoid them
Common mistakes include using the wrong hex size, cross-threading the plug, over-tightening, and dropping the plug into the engine. Avoid these by double-checking the hex size on the plug, using the correct socket and extension, and performing a controlled, gentle tightening sequence. If the plug is difficult to remove, use a penetrating oil and allow it to soak before reattempting. Never rely on pliers or improvised solutions; this can damage the plug and cylinder head.
The bottom line: why the right socket matters
The right lawn mower spark plug socket saves time, reduces the risk of damage, and makes routine maintenance repeatable. Choosing a socket with the correct hex size, a practical drive, and retention method that fits your space will pay off in smoother starts and longer engine life. For home DIYers, investing in a quality spark plug socket is a small step with big returns in reliability and safety.
Tools & Materials
- Spark plug socket (5/8-inch or 13/16-inch hex, magnetized or rubber-insert)(Choose the hex size that matches your mower plug; ensure a 3/8-inch drive is compatible with your ratchet)
- Ratchet wrench (3/8-inch drive) or torque wrench(Torque capability helps avoid over-tightening)
- Spark plug gap gauge(Used to confirm electrode gap after installation)
- Extension bar (short) and/or universal joint(Useful for reaching recessed plugs under the boot)
- Penetrating oil (optional)(Helps loosen a stubborn plug; apply sparingly and wipe away excess)

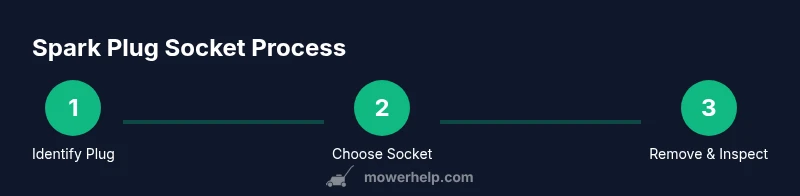

Steps
Estimated time: 30-45 minutes
- 1
Gather the right socket and tools
Lay out your spark plug socket (matching hex size), ratchet, extension, gap gauge, and any safety gear. This minimizes interruptions and ensures you won’t search mid-task.
Tip: Check the plug hex size before you start to avoid trying the wrong socket. - 2
Locate and prepare the spark plug
Identify the spark plug on the mower’s engine. Clear away debris around the area and inspect the boot for cracks or wear before disconnecting.
Tip: If the boot looks brittle, replace it before removing the plug. - 3
Disconnect the spark plug wire
Release the ignition wire or ignition coil boot from the spark plug to prevent accidental starting while you work.
Tip: Use a gentle wiggle to avoid damaging the boot tip. - 4
Loosen and remove the plug
Attach the correct socket, fit it squarely onto the plug, and slowly turn counterclockwise until the plug loosens. Remove the plug by hand to avoid dropping it.
Tip: If the plug is resistant, pause, recheck alignment, and try again with a bit more leverage. - 5
Inspect or replace the plug
Check the old plug for wear, fouling, or damage. If replacing, compare the new plug’s threads against the old one and gap the electrode to spec.
Tip: A fouled plug may indicate other airflow or fuel issues. - 6
Install the new plug and torque to spec
Thread the new plug by hand to avoid cross-threading, then snug it and, if available, apply the manufacturer’s torque specification using a torque wrench.
Tip: Never force the plug; cross-threading can cause engine damage. - 7
Reconnect the wire and test start
Reattach the spark plug wire securely, and start the mower in a safe, open area to confirm proper operation.
Tip: If it misfires, re-check the plug seating and gap before calling it a day.
Got Questions?
What is a lawn mower spark plug socket and why is it specialized?
A spark plug socket is a purpose-built tool that fits the plug’s hex size and provides secure retention, so you can loosen or tighten without dropping or damaging the plug. It often includes a magnet or rubber insert and a shallow depth suitable for tight engine bays.
A spark plug socket fits the plug hex and keeps the plug from dropping during removal or installation, with magnet or rubber retention for safety.
What sizes are common for lawn mower plugs?
Most lawn mower plugs use a 13/16-inch or 5/8-inch hex. Always verify the plug’s hex size by checking the manufacturer’s specs or the plug itself before selecting a socket.
Most lawn mowers use 13/16-inch or 5/8-inch hex plugs. Check your plug to be sure.
Should I use a magnetized or rubber-insert socket?
Both work; magnetized sockets hold the plug for easier removal, while rubber-insert sockets cushion and protect the plug. Magmets can be easier for beginners, but ensure the rubber is intact if you choose rubber-insert.
Magnetized sockets are convenient for holding the plug; rubber inserts cushion the plug—choose what fits your preference and space.
How do I know the correct torque without a spec sheet?
If you don’t have the exact torque spec, snug the plug by hand and give it a light further turn with a torque wrench or ratchet. Avoid over-tightening to prevent thread damage.
Without the exact torque, snug it by hand and give a small additional turn. Don’t over-tighten.
What if the plug is stuck?
Apply a small amount of penetrating oil, let it soak, then reattempt with proper socket alignment. If it still won’t loosen, step back and consult the mower manual or a professional.
If it’s stubborn, apply penetrating oil and reattempt with the right socket. If still stuck, seek expert help.
Can I reuse an old spark plug?
It’s generally best to replace a spark plug with a new one when removing for maintenance. Reused plugs risk fouling or misfiring and can degrade engine performance.
Usually better to replace the plug rather than reuse an old one.
Watch Video
The Essentials
- Know your plug hex size before buying a socket
- Magnetized or rubber-insert sockets prevent drops
- Always disconnect ignition wire before work
- Torque to manufacturer spec to protect threads
