Toro Recycler 22 Carburetor Repair Guide
Step-by-step guide to diagnose, clean, and rebuild the toro recycler 22 carburetor, with safety tips and tools to restore reliable starting and smooth operation.
Learn how to diagnose, remove, clean, and rebuild the toro recycler 22 carburetor, then test for reliable starting and smooth running. This step-by-step guide covers safety, common symptoms, required tools, and parts inspection to help DIY homeowners fix carburetor issues quickly.
Understanding the Toro Recycler 22 Carburetor
The Toro Recycler 22 mower relies on a compact diaphragm-style carburetor to mix air and fuel before the engine intake. In this model, the carburetor sits between the air intake and the intake manifold, delivering a metered fuel charge that determines idle, acceleration, and power output. When fuel sits in the tank long or ethanol-laden gasoline sits in contact with rubber parts, varnish and softening can occur. A clogged passage or a worn diaphragm will alter the air-fuel ratio, causing symptoms such as hard starting, rough idle, or reduced power. The toro recycler 22 carburetor is a relatively forgiving design for DIY repair, but it requires careful inspection of gaskets, diaphragms, needle seat, and jets. For homeowners troubleshooting and maintenance, this overview explains how the parts work together and what failure modes to expect. Remember that this is a gas-powered engine with flammable fuel—work in a well-ventilated area, away from sparks, and wear eye protection. According to Mower Help, addressing carburetor issues early can save time and avoid bigger repairs. Attention to the toro recycler 22 carburetor helps you align parts correctly. With the right approach, you can restore dependable performance on your Toro mower.
The toro recycler 22 carburetor model shares common parts with other Toro small engines.
Tools & Materials
- Safety glasses (ANSI-rated)(Protect eyes from fuel spray and debris.)
- Nitrile gloves(Keep hands clean and shielded from solvents.)
- Carburetor cleaner spray(Use specifically designed carb cleaner; avoid metal solvents.)
- Small screwdriver set (flat and Phillips)(For disassembly and reassembly of jets and screws.)
- Needle-nose pliers(Grasp small parts without bending or breaking them.)
- Rags or lint-free cloths(Wipe excess fuel and clean surfaces without leaving fibers.)
- Carburetor rebuild kit (for Toro Recycler 22)(Includes gaskets, diaphragms, needle and seat.)
- Replacement fuel lines and clamps(Inspect and replace if cracked or hardened.)
- Fuel catch container(Contain any spills safely.)
- Clean work surface with bag or tray(Keep parts organized and prevent loss.)

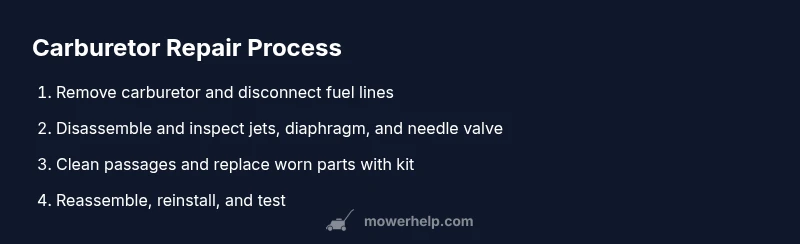

Steps
Estimated time: 60-90 minutes
- 1
Power down and secure the mower
Shut off the engine, disconnect the spark plug boot, and allow the mower to cool. If your model has a fuel shutoff, close it to minimize spills. Move to a well-ventilated area and arrange a clean, flat workspace with a container for spills.
Tip: Always disconnect ignition components first to avoid accidental starts. - 2
Access the carburetor area
Remove the air filter housing or shroud as needed to expose the carburetor. Take photos during the process to document hose and linkage orientation for later reassembly.
Tip: Taking pictures helps prevent misalignment of throttle and choke linkages. - 3
Detach fuel lines and remove the carburetor
Carefully loosen clamps and detach fuel lines without twisting. Remove mounting screws to free the carburetor from the intake manifold. Have a container ready for any residual fuel.
Tip: Work slowly to avoid damaging brittle hoses or adapters. - 4
Disassemble the carburetor
Open the body to inspect the diaphragm, gaskets, jets, and needle valve. Lay out parts in order or photograph each step to ensure correct reassembly.
Tip: Handle diaphragms gently; pinched diaphragms cause leaks and poor performance. - 5
Clean and inspect components
Use carburetor cleaner to scrub jets and passages. Check the needle and seat for wear or gunk. Replace worn diaphragms or gaskets with the rebuild kit as needed.
Tip: Never reuse cracked gaskets; replace with new ones from the kit. - 6
Reassemble and reinstall the carburetor
Reassemble in the reverse order, making sure seals are tight and diaphragms sit flat. Reattach to the intake manifold and reconnect fuel lines with new clamps if installed.
Tip: Double-check all fasteners for proper torque to avoid leaks. - 7
Tune and test the engine
Reconnect the spark plug, add fresh fuel, and start the mower. Check for leaks, adjust idle and mixture screws as needed, and test under load.
Tip: Make small adjustments; a few turns of the idle or mixture screws can dramatically affect performance. - 8
Final check and maintenance
Run the engine through a full idle-to-full-throttle cycle to confirm consistency. Clean work area, dispose of spent fuel safely, and store tools properly.
Tip: Keep a record of any parts replaced for future maintenance.
Got Questions?
What are the most common signs that the toro recycler 22 carburetor needs cleaning?
Hard starting, rough idle, or stalling under load often indicate carburetor issues. You may also notice a strong fuel smell or rich/lean running symptoms.
Common signs include hard starting and rough idle; if you notice stalling or fuel smells, inspect the carburetor.
Can I clean a carburetor without rebuilding it?
Yes, cleaning can fix varnish and minor gunk, but worn diaphragms or a damaged needle seat usually require a rebuild kit. Inspect parts before deciding.
You can start with cleaning, but replace worn parts if cleaning alone doesn’t restore performance.
What parts should be included in a rebuild kit for this carburetor?
A typical rebuild kit includes gaskets, diaphragms, needle and seat, and sometimes updated springs or jets. Ensure compatibility with the toro recycler 22 carburetor model.
The rebuild kit should include diaphragms, gaskets, needle and seat for the Toro Recycler 22 carburetor.
Is ethanol fuel a problem after rebuilding?
Ethanol can degrade seals and diaphragms over time. Use fresh, ethanol-free fuel when possible and consider stabilizers for stored fuel.
Ethanol can affect seals; use fresh fuel and stabilizers if you must store fuel.
How long does a rebuild typically take for a DIY homeowner?
A typical rebuild and reinstall can take about an hour or two depending on skill and access to the carburetor. Expect longer on a tight workspace.
Most people complete it in 60 to 120 minutes with the right tools.
Do I need professional tools or can I manage with basic tools?
Basic hand tools and carburetor cleaner are sufficient for most tasks. A rebuild kit and proper safety gear are essential for best results.
A basic toolset plus the rebuild kit will usually handle the job well.
