Where Is the Mower Deck? A Homeowner's Guide to Access
Learn exactly where the mower deck sits on common lawn tractors and push mowers, with step-by-step instructions to locate, inspect, and service it safely.
The mower deck is the cutting platform beneath the mower’s frame, connected to the blades via spindles and belts. Start by safely powering down, remove any grass catcher, and refer to your model diagram. In most machines, the deck sits just above the wheels; access is from the sides or underneath for cleaning and service. Always unplug the mower and secure it before touching moving parts.
Understanding the Mower Deck: What It Is and Why It Matters
The mower deck is the cutting platform that houses the blade assembly and is mounted beneath the mower’s chassis. It collects grass clippings and drives the blades via the spindle and belt system. Understanding its location helps diagnose performance issues, replace a worn belt, or access the underside for cleaning and maintenance. The deck’s size, mounting points, and access panels vary by model, so always consult your model-specific diagram before attempting removal. Knowing where the deck sits also helps with safety checks, such as ensuring the blades are fully stopped and the machine is powered down before handling. For homeowners, the deck is not just a cutting surface—it’s where belts wear, blades dull, and debris can accumulate, so a quick check during routine maintenance can prevent bigger problems.
Common Deck Configurations and Access Points
Deck configurations vary by mower type. Push mowers typically use side panels or a front cover to access the deck, while riding mowers may have an under-hood access panel or rear qualifier that exposes the deck belt and spindle. Zero-turn mowers often rely on quick-release panels on the sides for deck access. Regardless of type, most decks share a two-to-four-bolt mounting system and a belt-driven drive. Recognizing where to look—whether it’s under a side shield or a protective rear door—will save time and reduce the risk of accidental injury. If you see a grass bagger attachment, there’s often a dedicated panel near the deck that must be opened first to reach the belt area.
Safety First: Preparing to Access the Deck
Before you touch the mower deck, prioritize safety. Disconnect the spark plug wire or unplug the battery to prevent accidental starts, engage the parking brake, and place the mower on a level, stable surface. Wear gloves and eye protection to guard against sharp edges and flying debris. If you’re planning to remove the belt or blades, have a way to secure moving parts (like a blade holder or a charged engine stop) to avoid unexpected spin. Lay a tarp or sheet to catch oil, grease, and grass clippings, and keep fasteners in a labeled container to prevent loss.
Locating the Deck on Different Mower Types
Where is the mower deck can vary by model, but you can follow a general approach. Push mowers usually expose the deck from the right or left side via a panel or shield. Riding mowers typically require removing a rear or under-hood panel to reveal the deck and belt. Zero-turns may have access doors along the front or sides. For all types, start with the owner's manual diagrams and look for the deck’s belt routing path. When in doubt, photograph each panel before removal so you can reassemble correctly.
Reading Diagrams and Model-Specific Guides
Model-specific diagrams are your best friends when locating the mower deck. Most manufacturers provide exploded-view diagrams showing deck mounting points, belt routing, and blade assemblies. If you cannot locate a paper diagram, check the manufacturer’s website or support forum for your mower model. Ensure you’re looking at the exact model and year; even small variations can change where the deck sits and how it’s accessed. Keeping a small notebook with panel screw sizes can save time on future maintenance.
Basic Maintenance You Can Do After Deck Access
Once the deck is accessible, you can perform several maintenance tasks that improve cutting performance and longevity. Check the blade for nicks or dull edges and replace if necessary. Inspect the belt for cracks or glazing and replace if frayed or stretched. Clean out built-up grass and debris, especially around the spindle and pulley area. Lubricate exterior moving joints if your model supports it, and verify blade spindle bolts are tight. Reassemble carefully, ensuring the belt is correctly seated in pulleys and the deck sits flush against mounting points.
When to Call a Pro
If you encounter damaged spindle bearings, a severely warped deck, cracked housing, or a stubborn belt that won’t track correctly, it’s wise to call a professional. Deck removal and reinstallation can be risky if mounting bolts, pulleys, or drive belts aren’t aligned precisely. A qualified technician can perform a full inspection, identify hidden wear, and prevent costly mistakes from DIY attempts. Regular maintenance is best handled with a routine schedule to minimize the chances of needing major repairs.
Tools & Materials
- Work gloves(Leather or heavy-duty work gloves to protect hands from sharp blades and edges)
- Safety glasses(Before starting, wear eye protection against debris)
- Screwdriver set (Phillips and flathead)(Have both types on hand for screws and panels)
- Socket wrench set(Assorted sizes to remove deck mounting bolts)
- Torque wrench (optional)(Useful for re-tightening deck mounting bolts to spec)
- Drain pan or tarp(Catches oil, grease, and grass clippings)
- Flashlight or headlamp(Bright light helps locate hidden fasteners and belt paths)
- Owner's manual or model diagrams(Always reference model-specific access points)

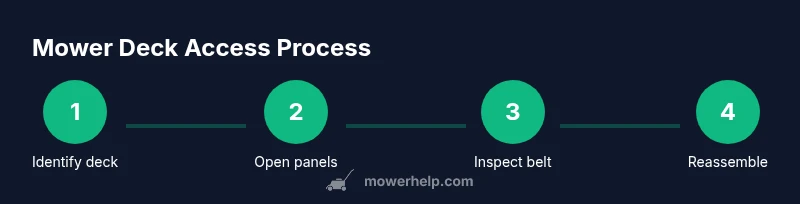

Steps
Estimated time: 30-60 minutes
- 1
Power down and secure
Disconnect the spark plug wire or remove the battery, engage the parking brake, and place the mower on a level surface. This prevents accidental starts while you’re working near the blades.
Tip: Double-check there’s no residual spark or power by attempting a gentle test with the switch off. - 2
Clear the deck area
Remove the grass catcher and any loose debris from around the deck. This gives you clear access to panels, belts, and mounting bolts.
Tip: Keep catcher components in a labeled area to avoid misplacing parts. - 3
Inspect access panels
Identify which panels cover the deck on your model. Use the owner’s manual diagrams to locate screws or latches, and prepare the proper screwdriver adjustments.
Tip: Take a photo of the panel layout before removing screws to aid reassembly. - 4
Open the panel and expose the deck
Carefully remove the panel to reveal the deck and belt system. Support or block the deck if you anticipate any shifting while you remove fasteners.
Tip: Do not pry aggressively; use gentle pressure to avoid bending components. - 5
Inspect belt and blades
Look for frayed belts, dull blades, and sign of wear on spindles. Replace parts as needed following your model’s torque recommendations.
Tip: Keep blade removal straightforward; note the orientation for re-installation. - 6
Clean and reassemble
Clean debris from the deck area, reinstall any panels, belt, and blade assembly. Ensure all fasteners are snug but not overtightened.
Tip: Re-check belt alignment after reassembly to prevent belt-slippage during use. - 7
Test the mower
Reconnect power, start on level ground, and check for smooth belt operation and even cutting. Listen for abnormal noises which may indicate misalignment.
Tip: Test at a low cutting height first to confirm the system runs evenly. - 8
Record maintenance
Note the date and parts replaced for future reference. Include model-specific tips in your log to simplify next maintenance cycle.
Tip: Schedule routine checks every season for optimal performance.
Got Questions?
What is the mower deck and why is it important to locate it?
The mower deck is the cutting platform that houses the blade assembly and belt system. Locating it helps you perform maintenance, replace worn parts, and clean under the deck to maintain performance.
The mower deck is the cutting platform under the mower where the blades attach. Locating it lets you do maintenance and keep cutting performance at its best.
How do I know where to look for the deck on my specific model?
Refer to the model’s owner’s manual diagrams or exploded-view drawings on the manufacturer’s website. These diagrams show deck location, panel access, and belt routing for your exact model.
Check your manual or the manufacturer’s site for the exact deck location and access points for your model.
Can I access the deck without removing major components?
Some decks are accessible through side shields or rear panels without removing the entire mower. Others may require removing the grass catcher or a panel to reach the belt and spindle.
Sometimes you can access the deck through shields or panels, but some models need panel removal.
What safety steps should I take before locating the deck?
Always unplug power, disconnect the spark plug wire or battery, engage the brake, and work on a stable surface with gloves and eye protection.
Power off and unplug, engage brakes, and wear gloves and eye protection before starting.
When should I replace the deck belt or blades?
Replace belts showing cracks or glazing and blades with visible nicks or dullness during inspection. Do so following torque specs from the manual to avoid belt slip or blade imbalance.
Replace worn belts or dull blades as soon as you notice wear, following the manual's torque specs.
Is it okay to consult a repair service for deck work?
If you encounter a warped deck, damaged spindle bearings, or persistent misalignment, a professional repair service is recommended to prevent safety risks and ensure proper reassembly.
Yes—call a pro if you see major damage or misalignment that you can’t safely fix.
Watch Video
The Essentials
- Identify the deck using model diagrams and panel access points.
- Power down and secure the mower before any inspection or removal.
- Inspect belts, blades, and spindles for wear during deck access.
- Reassemble carefully and test on level ground.
