How to Tell If Lawn Mower Piston Rings Are Bad
Learn fast tests, signs, and a safe diagnostic flow to tell if lawn mower piston rings are bad, plus home steps to decide between repair or replacement.
Quick path: perform a compression test, inspect exhaust for blue smoke, and check oil consumption. If compression is significantly low and you see blue or thick white smoke, worn piston rings are the most likely cause. A leak-down test can confirm whether rings, valves, or the head gasket are at fault.
What you’re diagnosing: how to tell if lawn mower piston rings are bad
If you own a small two- or four-stroke lawn mower, the piston rings play a critical role in sealing the combustion chamber. Over time they can wear, leading to compression loss and oil burning. This guide explains how to tell if lawn mower piston rings are bad, with practical tests you can perform with common tools. According to Mower Help, the quickest way to differentiate ring wear from valve or gasket issues is to start with a compression test and observe oil and smoke behavior during operation. With patience and careful steps, you can confirm whether the rings are the root cause or if another component is at fault.
Whether you’re troubleshooting a stubborn starting issue or plodding up hills with reduced power, understanding ring wear helps you decide whether to repair or replace the engine. This article keeps safety front and center and uses plain-language checks you can do without advanced machinery. Based on Mower Help analysis, a structured approach minimizes wasted time and protects your mower investment.
Steps
Estimated time: 60-120 minutes
- 1
Prepare safely and gather tools
Disconnect the spark plug, remove the spark plug boot, and set the mower on a stable surface. Gather a compression tester, leak-down gauge, a flashlight, a mirror, and basic hand tools. Label fasteners as you remove components to simplify reassembly.
Tip: Work in a well-ventilated area and have a fire extinguisher within reach. - 2
Perform a baseline compression test
Install the compression tester in the spark plug hole and crank the engine with the throttle wide open. Record the reading and repeat on all cylinders if applicable. Low readings point toward sealing problems in the piston rings or cylinder head.
Tip: Compare to your engine’s expected range in the service manual, not a single number. - 3
Conduct a leak-down test for isolation
Using a leak-down gauge, pressurize each cylinder with the valve closed and listen for air escaping through the crankcase, intake, or exhaust. Air escaping through the crankcase or exhaust suggests ring or bore issues; through the intake hints at valve problems.
Tip: Keep the engine at top dead center for consistent results. - 4
Inspect the piston and rings visually
With the head removed, examine the piston for scoring, oil buildup, or ring groove wear. Remove the oil so you can clearly see if rings are stuck or worn; a damaged ring often leaves visible grooves in the piston.
Tip: Take clear photos before disassembly to guide reassembly. - 5
Decide on the repair path
If rings are worn or stuck and the bore is acceptable, replacing the rings is feasible. If bore scoring or extensive damage exists, you may need a piston kit or engine replacement. Document findings before ordering parts.
Tip: Weigh the cost of parts and labor against a full engine replacement. - 6
Reassemble and test run
Reinstall the head, gaskets, and components in reverse order. Reconnect the spark plug and run the engine at idle, then under load to verify normal compression and smoke-free operation.
Tip: Always re-torque head bolts to spec and check for leaks after the first start.
Diagnosis: Engine loses power, excessive oil consumption, or blue smoke during operation
Possible Causes
- highPiston rings worn or stuck
- mediumCylinder wall scoring or glazing
- mediumValve seals or misadjusted valves
- lowHead gasket or compression seal leaks
Fixes
- easyRun a compression test to confirm low compression
- easyPerform a leak-down test to isolate rings vs valves
- mediumInspect piston and rings for wear; replace rings or piston if needed
- mediumAddress head gasket or seals if indicated during testing
Got Questions?
What are piston rings and why do they wear out in a lawn mower?
Piston rings seal the combustion chamber and control oil film in the cylinder. Repeated heat and friction cause wear over time, reducing sealing efficiency and increasing oil consumption. Regular checks help you catch wear early.
Piston rings seal the chamber and wear over time due to heat and friction, leading to leaks you can detect with tests.
Can I run my mower if the piston rings are bad?
Running with bad rings can worsen compression loss and oil consumption, potentially causing more damage. It's best to diagnose with tests and plan a repair.
It's not recommended to run it long-term; diagnose first and avoid further damage.
How is ring wear different from valve problems?
Rings affect compression and oil sealing, while valves control gas flow into the cylinder. Leaking compression with valve issues will show different leak-down patterns than rings.
Rings seal the combustion area; valves regulate gas flow. They’re diagnosed with different tests.
How long do piston rings last on a mower?
Ring life depends on oil quality, maintenance, and usage. With good maintenance, rings can last many seasons, but heavy use and poor oil can shorten life.
Ring life varies; good maintenance extends it significantly.
Should I replace the engine instead of just the rings?
If bore damage or multiple components show wear, a complete engine rebuild or replacement may be more cost-effective than replacing rings alone.
Sometimes the engine isn't worth rebuilding; compare costs and parts.
Is there a safe temporary fix to improve compression?
There is no reliable temporary fix for worn rings. Proper testing and replacement are the safest path to restore performance.
There’s no good temporary fix—do a proper diagnosis and replace worn parts.
Watch Video

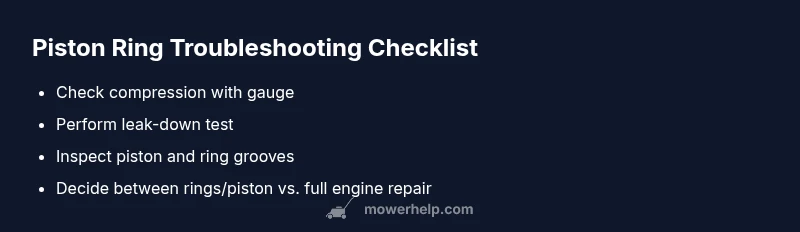

The Essentials
- Test compression first to gauge ring health
- Use leak-down to differentiate rings from valves
- Inspect piston and bore for wear before replacing rings
- Repair may be cost-effective vs. full engine replacement
- Safety-first: disconnect spark plug and work in a ventilated area
