How to Fit ATV Wheels on a Lawn Mower: A DIY Guide
Learn how to convert a lawn mower to use ATV wheels with a compatible wheel adapter. This guide covers compatibility, safety, required tools, installation steps, and maintenance for a secure, off-road-ready setup.
To convert a lawn mower to use ATV wheels, you'll install a purpose-built wheel adapter kit that matches your mower's axle spacing, bolt pattern, and shaft diameter, while preserving ground clearance and safety. Confirm compatibility with your mower model, and follow the kit's mounting steps for a secure connection.
What is a lawn mower to ATV wheel adapter?
According to Mower Help, a lawn mower to ATV wheel adapter is a purpose-built mounting plate or hub adapter that lets you attach ATV-style wheels to a gasoline-powered mower. These adapters align bolt patterns, spacings, and the axle bore to ensure a secure fit while maintaining ground clearance. They can be direct-fit or require minor fabrication, and they typically support standard ATV wheel sizes within a defined load rating. Proper adapters reduce the risk of misalignment, vibration, and bolt failure when the mower is subjected to off-road loads. Before purchasing, confirm that your mower's frame can accept the adapter's mounting points and that the wheels clear the mower deck and any drive components.
Compatibility and sizing considerations
Compatibility hinges on three primary dimensions: bolt circle diameter (also called PCD), center bore, and axle spacing. You’ll need to measure the mower's axle width, the spindle/shaft diameter, and the wheel’s bolt pattern. ATV wheels commonly use common bolt patterns, but mismatches are common pitfalls. When patterns do not align, an adapter with a correct bolt configuration or a dedicated machining job may be required. Also verify ground clearance after mounting; reduced clearance can cause contact with the mower deck, crankcase, or suspension components during turns or on uneven terrain. The adapter should also support the load rating of both the mower and the wheel assembly to prevent bending or wheel detachment under load.
Choosing a kit and components
Begin with a kit that explicitly lists compatibility with your mower model and the ATV wheel size you intend to use. Look for solid construction (steel or billet aluminum), robust mounting hardware, and a documented torque specification. High-quality kits include properly sized studs, locking nuts, and corrosion-resistant finishes. A well-designed adapter reduces runout and keeps the wheel perpendicular to the ground. If you consider a custom fabrication route, ensure professional-grade fabrication tolerances and corrosion protection are in place. The goal is a stable, balanced wheel assembly that can withstand the mower’s vibrations without loosening.
Tools, safety prerequisites, and preparation
Before starting, assemble the necessary tools and PPE, and inspect the mower for any existing damage or wear that could affect installation. A clean workspace makes it easier to align holes and torque bolts accurately. Safety goggles, gloves, and hearing protection are essential; operating near rotating shafts and loose hardware can cause serious injury. If your adapter kit includes a hub spacer or shims, plan for their use to achieve proper alignment. Finally, consult the kit manual for any model-specific precautions and torque specifications to avoid over-tightening or under-tightening bolts.
Step-by-step installation overview

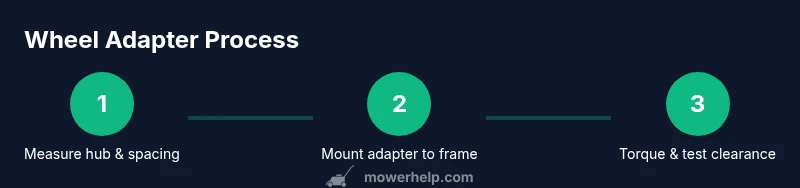

The installation flow typically follows safe, repeatable steps: (1) verify compatibility and measure all critical dimensions; (2) remove the stock wheels and inspect the axle for wear; (3) align the adapter with the mower frame and secure the mounting points; (4) attach the ATV wheels, torque all fasteners to spec, and confirm there is no contact with the deck or drive components; (5) test on flat ground, then on a mild slope to confirm stability. Throughout, maintain clean threads, use anti-seize on stainless hardware if recommended, and re-check torque after a short break-in period to account for settling.
Common pitfalls and troubleshooting
Common issues include misaligned bolt patterns, insufficient thread engagement, and tight fits that cause binding. If the wheel doesn’t sit squarely, re-check the alignment and spacing, then verify the hole pattern matches the adapter. Loosening fasteners to re-align can help, but avoid over-tightening, which can strip threads. Vibrations may indicate mounting hardware loosening or wheel wobble; stop operation and re-torque as needed. In some cases, you may need additional spacers or shims to achieve proper alignment and ground clearance.
Authority sources and safety considerations
Always prioritize safety and consult established guidelines. OSHA provides general machine safety principles that apply to any modification involving rotating equipment and mounting hardware. The CDC/NIOSH resources offer best practices for safe handling of equipment, while NHTSA materials remind us to consider legal and practical safety aspects of vehicle-like modifications. These sources help frame best practices for torque, bearing load, and stable mounting when adapting lawn equipment for off-road use.
Maintenance and long-term care
After installation, routinely inspect mounting bolts for tightness, re-torque as necessary after the first 50–100 miles of use, and periodically inspect wheel bearings for play or noise. Clean and re-lubricate moving parts per the adapter kit’s recommendations, and replace any worn spacers or spacers that show signs of deformation. Regular checks reduce the risk of wheel detachment and improve overall stability on uneven terrain.
Tools & Materials
- Measuring tape(At least 6 feet for accurate axle spacing and bore checks)
- Calipers or digital micrometer(For measuring bore diameter and bolt hole circle precisely)
- Torque wrench(To meet adapter kit torque specs and avoid over-tightening)
- Socket/wrench set (including deep sockets)(For removing stock wheels and attaching adapters)
- Locking compound or anti-seize lubricant(As recommended by the adapter kit, for threads)
- Lubricant or penetrating oil(Eases bolt removal if fasteners are tight or corroded)
- Alignment tool or temporary shim kit(Helps achieve square alignment during mounting)
- Protective gloves and safety glasses(Personal protective equipment for all steps)
- Rags and degreaser(Cleaner setup for mounting surfaces)
Steps
Estimated time: 2-4 hours
- 1
Verify compatibility and measure
Check the mower model against the adapter kit’s compatibility list. Use calipers to measure the axle bore and measure the wheel’s bolt pattern. Confirm the wheel will clear the mower deck and the drive components during turning and articulation.
Tip: Document all measurements before ordering parts to avoid returns. - 2
Remove existing wheels and prep the hub
Safely lift the mower and remove the stock wheels. Inspect axles for wear and clean the mounting surface. Apply anti-seize where recommended to prevent future corrosion and ensure easier reassembly.
Tip: Take photos of each mounting area for reference during reassembly. - 3
Mount the adapter to the frame
Align the adapter’s bolt pattern with the mower frame holes and insert fasteners. Start bolts by hand to avoid cross-threading, then snug them before final torquing. Check that the adapter sits flat with no gaps.
Tip: Use a temporary alignment shim if holes don’t perfectly line up; verify before final tightening. - 4
Install ATV wheels and torque to spec
Attach the ATV wheel onto the adapter, ensuring the hub bore and studs mate securely. Torque all fasteners to the adapter kit’s specification, and verify there’s no contact with the deck or drive components.
Tip: Torque gradually in a star pattern to prevent uneven loading. - 5
Initial test and safety checks
Lower the mower, perform a low-speed test on flat ground, and listen for unusual sounds or vibrations. If vibrations occur, recheck torque and alignment. Confirm there is adequate clearance in all operating positions.
Tip: Always test on level ground first; move to gentle slopes only after successful flat-ground tests.
Got Questions?
Can I install ATV wheels on any lawn mower?
Not every mower is compatible. You must have a matching bolt pattern and hub bore, plus adequate frame clearance. If your mower’s dimensions don’t align with the adapter, you may need a different kit or professional fabrication.
Compatibility depends on bolt pattern, bore size, and clearance. If those don’t align, don’t force it.
Do I need professional help for installation?
Optional for experienced DIYers with fabrication skills or a compatible kit. If uncertain about alignment or torque specs, consulting a technician can prevent dangerous failures.
If you’re unsure about measurements or torque, seek professional help.
Will modifying my mower affect safety or insurance?
Modifications can affect safety guarantees and insurance in some jurisdictions. Always verify local regulations and ensure the modification maintains safe operation and visibility.
Check local rules and your insurer's policy before modifying.
What maintenance is needed after installation?
Regularly inspect mounting hardware, re-torque after initial use, and monitor wheel bearings for wear. Clean surfaces and reapply anti-seize where recommended.
Inspect and re-torque after use; keep parts clean and lubricated.
Watch Video
The Essentials
- Measure first, buy parts second
- Match bolt pattern and bore before buying
- Torque to spec and verify clearance
- Test carefully on flat ground before challenging terrain
