Where Is the Spark Plug on a Lawn Mower? A Practical Locator Guide
Learn exactly where the spark plug sits on common lawn mowers, how to access it safely, inspect for wear, and replace if needed. A practical, maintenance-focused guide from Mower Help.
Quick Answer: To locate the spark plug on a typical lawn mower, first remove the engine cover or air filter to expose the cylinder head. Trace the ignition wire from the coil to where it screws into the head. In most small gas mowers, the plug sits on the side of the engine block, secured with a hex nut and accessed with a spark plug wrench.
Understanding Spark Plugs in Lawn Mower Engines
If you're asking where is spark plug in lawn mower, the short answer is that the plug is mounted on the engine block and accessed from the side, behind the air-cleaner housing. In most small gas-powered mowers, you’ll find the plug threaded into the cylinder head with a protective boot connected to the ignition coil. To locate it quickly, remove any protective top cover or the air-filter housing; the plug will sit in a metal receptacle with a hex-shaped nut that you’ll unscrew with a spark plug wrench. The spark plug is essential for initiating combustion, so a worn or fouled plug can lead to hard starts or rough running. By understanding its location, homeowners can perform quick inspections or replacements in under an hour, reducing downtime and improving starting reliability.
Below you’ll see how this simple component fits into the overall engine and why a precise location matters for safe maintenance. This knowledge also lays the groundwork for diagnosing symptoms like hard starting, misfires, or loss of compression, which often trace back to the spark plug in some way. The location is typically consistent across many two- to four-stroke small engines, but always consult your mower’s manual for model-specific details.
As you read, remember that safety and proper fit are more important than speed. The Mower Help team emphasizes careful handling, correct plug type, and appropriate gap settings as the core of any spark plug maintenance task. This section sets the foundation for the hands-on steps that follow and helps you avoid common mistakes when you start exploring the spark plug area on your mower.
Tools, Safety, and Reading Your Manual
Before you start, gather the essential tools and review the mower’s manual. The basics include a spark plug wrench, a replacement spark plug of the correct type, cleaning cloths, gloves, and a small brush to clean around the plug port. Safety first: ensure the engine is off, the spark plug boot is disconnected, and the mower is on a stable surface. If the engine is hot, wait until it cools to avoid burns. Use eye protection and gloves; keep loose clothing away from moving parts. Reading the manual helps you confirm the plug size and the recommended gap setting, which can vary between models. The right plug and setting can improve starting performance, fuel efficiency, and emissions, making this step a smart first move for any DIY maintenance routine.
Many brands publish model-specific guidance, so take a moment to verify the information for your exact mower. If you’re unsure, note the mower’s make and model and cross-check with the manual or a trusted source like Mower Help. This careful preparation minimizes missteps and helps you complete the task without unnecessary disassembly.
This block also covers basic safety precautions: disconnect the spark plug boot before touching the plug, work on a dry surface, and keep a fire extinguisher nearby in case of an unexpected spark. With the right tools and a clear plan, you’ll locate and access the plug with reduced risk and greater confidence.

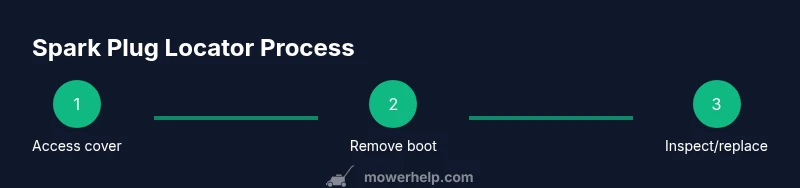

Step-by-Step: Locating and Accessing the Spark Plug
-
Power off and allow engine to cool: Park the mower on a flat surface, switch off, and wait for all moving parts to stop. Remove the spark plug boot from the wire to prevent accidental shocks while you work. This cooling period reduces burn risk and helps you handle the plug without heat-related damage.
-
Access the spark plug area: If your mower has a protective cover or air-filter housing, remove it carefully to reveal the spark plug and surrounding area. Keep track of fasteners and set them aside so reassembly is easy. A clear view around the plug prevents accidental damage to nearby components.
-
Disconnect the ignition boot: Grasp the boot where it meets the plug and pull straight away from the plug—don’t yank on the ignition wire. A gentle twist can help release a stubborn boot without harming the coil. This step isolates the plug for safe removal.
-
Remove the spark plug: Fit the spark plug wrench onto the plug’s hex, turn counterclockwise, and lift the plug straight out. Inspect the plug for wear, carbon buildup, oil fouling, or a damaged insulator. Handle the plug carefully to avoid dropping it into the engine bay.
-
Inspect or replace the plug: If the electrode is worn or heavily fouled, replace with a new plug of the correct type and verify the gap per your manual. If you reuse a plug, clean the electrodes gently and ensure the insulator is intact; don’t attempt aggressive cleaning that could damage the porcelain.
-
Install the plug and reattach the boot: Thread the plug by hand to avoid cross-threading, then snug it with the wrench until it seats firmly. Reconnect the ignition boot so it sits snugly against the plug, providing a good seal and reliable spark delivery. Reassemble any covers or filters you removed.
-
Reassemble and test: Replace any covers, reconnect the spark plug wire, and start the mower to verify smooth operation. If the engine misfires or runs rough, recheck the plug type, gap setting, and boot connection; verify the fuel system is functioning and the air filter is clean.
tip:
Tools & Materials
- Spark plug wrench(Typically 13/16" or 5/8" hex; size depends on the plug. Check the plug size on the existing plug or mower manual.)
- Replacement spark plug (correct type)(Match the manufacturer’s specification and ensure the correct gap as per the manual.)
- Rags/brush for cleaning(Use to clean the plug port and around the base before reinstalling.)
- Safety gloves(Protect hands from cuts and hot surfaces.)
- Safety glasses(Eye protection while working under the hood.)
- Penetrating oil (optional)(Useful if the plug is difficult to loosen due to corrosion.)
Steps
Estimated time: 30-40 minutes
- 1
Power off and allow engine to cool
Turn the mower off, wait for the engine to cool completely, and remove the spark plug boot from the wire to prevent shocks while you work.
Tip: Never work on a hot engine; hot metal can cause burns. - 2
Access the spark plug area
Remove the protective cover or air-filter housing to expose the spark plug and surrounding components.
Tip: Keep track of all fasteners and consider taking a quick photo for reassembly. - 3
Disconnect the ignition boot
Gently tug the boot away from the plug without pulling on the ignition wire to avoid coil damage.
Tip: Twist slightly while pulling to help release the boot. - 4
Remove the spark plug
Use the spark plug wrench to turn counterclockwise and remove the plug for inspection.
Tip: Avoid dropping the plug into the engine bay. - 5
Inspect or replace the plug
Check for heavy deposits, oil fouling, or worn electrodes. If needed, replace with the correct type and verify the gap per manual.
Tip: Light deposits can often be cleaned; heavy fouling means replacement. - 6
Install the plug and reattach the boot
Thread the plug by hand to prevent cross-threading, then snug with the wrench and reconnect the boot securely.
Tip: Don’t over-tighten; follow the manual’s guidance for the final tightness. - 7
Reassemble and test
Reinstall covers/air-filter housing, reconnect the spark plug wire, and start the mower to confirm proper operation.
Tip: If starting issues persist, recheck the plug type and gap, and inspect the spark plug boot connection.
Got Questions?
Where is the spark plug located on most lawn mowers?
In most small engines, the spark plug is mounted on the side of the cylinder head, often behind the air-filter housing or under a small access cover. The exact location varies by model, so consult the owner's manual if you’re unsure.
The spark plug is usually on the side of the engine head, often behind the air-filter housing.
Do I need to remove the air filter to access the spark plug?
Often you must remove the air-filter housing to see and reach the spark plug. This makes the plug easier to inspect or replace without removing the entire cover.
Yes, you’ll usually need to remove the air filter housing to access the plug.
What indicates a bad spark plug on a lawn mower?
Common signs include heavy carbon or oil deposits, a worn electrode, or a plug that is difficult to gap. These conditions can cause hard starting, misfires, or rough engine operation.
Look for heavy deposits or worn electrodes; these mean the plug may need replacement.
Can I use any spark plug type for my mower?
No. Use the plug type recommended by the mower manufacturer; using the wrong type or incorrect gap can cause misfires or poor performance.
Use the manufacturer-recommended plug type and gap.
How often should I replace a spark plug?
Follow the mower’s maintenance schedule; many engines benefit from periodic replacement, especially if performance declines or the engine starts hard.
Check your manual for replacement intervals and signs that it’s time for a new plug.
Is it safe to start the mower with the spark plug removed?
No. Starting a mower with the plug removed is dangerous and can damage the ignition system. Always reinstall the plug before operating the mower.
No—never start the mower with the spark plug out.
Watch Video
The Essentials
- Identify the spark plug location on your mower before disassembly.
- Inspect for fouling; replace if deposits are heavy or if the plug is worn.
- Always use the plug type and gap specified by the mower manual.
- Safely reassemble and test to ensure proper ignition and performance.
- Follow model-specific guidance to avoid cross-threading and improper gaps.
