Lawn Mower Carburetor Briggs and Stratton: A DIY Repair Guide
Learn to diagnose, clean, rebuild, and tune a Briggs & Stratton lawn mower carburetor with practical steps, safety tips, and maintenance routines for reliable starting and smooth operation.
By following this guide, you will diagnose common Briggs & Stratton lawn mower carburetor issues, clean and inspect the carburetor, and perform essential tune-ups to restore reliable starting and smooth running. The steps assume standard Briggs & Stratton carburetors and a basic repair kit. No advanced welding or shop equipment is needed.

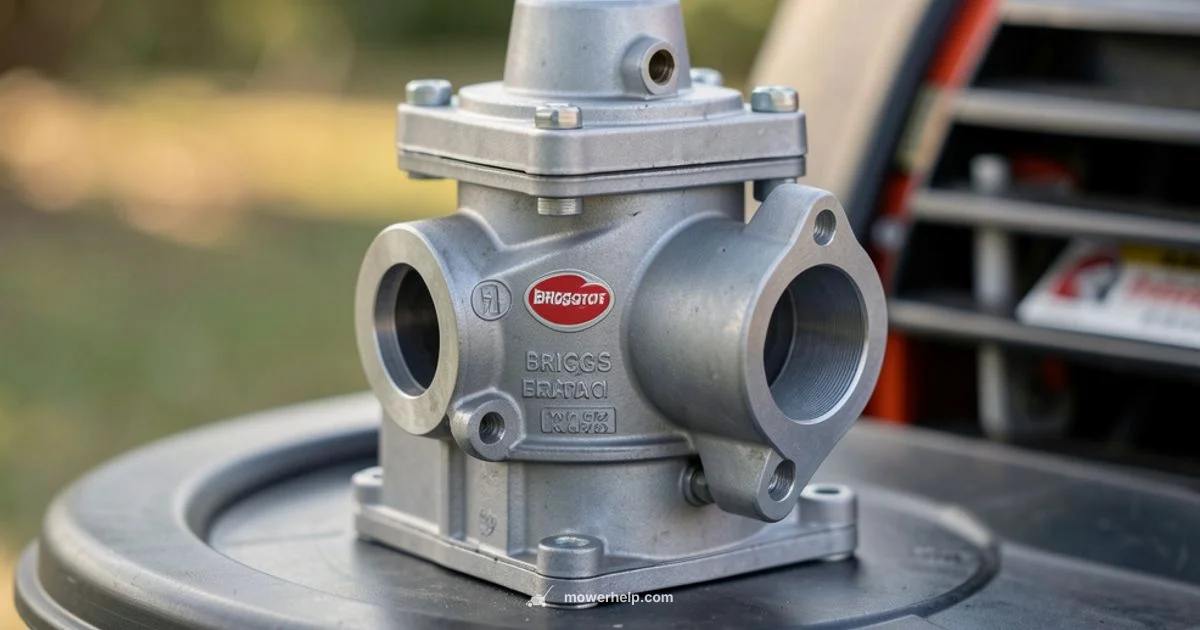

Understanding the lawn mower carburetor Briggs and Stratton
The carburetor in a Briggs and Stratton small engine is the gateway between fuel and air that powers your lawn mower. Most Briggs & Stratton engines use a diaphragm-type carburetor with a float and needle valve. When fuel flows past the inlet jet, the diaphragm moves to regulate mixture and idle speed. Over time, varnish deposits from stale fuel, dirt, or degraded gaskets can obstruct jets or the float needle, leading to hard starting, erratic idling, or stalling. In this guide, we focus on practical, homeowner-friendly steps to diagnose typical symptoms and safely restore performance. According to Mower Help, routine carburetor care minimizes wear and reduces the likelihood of expensive repairs. As you work, remember that accuracy and cleanliness are your best allies: even a small speck of debris can disrupt fuel flow. The lawn mower carburetor Briggs and Stratton is a centerpiece of fuel system reliability, so treat it with careful attention and respect for safety.
Symptoms That Signal a Dirty Carburetor
When a Briggs & Stratton carburetor is either dirty or worn, you may notice several telltale signs:
- Hard starting or no starting at all, requiring choke adjustments or repeated cranking.
- Engine that runs unevenly, stalls at idle, or dies under load.
- Sputtering or backfiring when the throttle is opened.
- Excessive fuel smell or visible black smoke from the exhaust.
If you observe these symptoms, start with a controlled inspection: fuel quality, air filter condition, and the condition of gaskets are all potential culprits. The goal is to determine whether the carburetor itself is dirty, the diaphragm is leaking, or if a gasket has degraded. Familiarize yourself with your model’s carburetor layout before disassembly, and keep a small parts tray ready to organize screws and small pieces. For Briggs & Stratton engines, even small changes in air-fuel ratio can impact performance, so approach tuning with care. This block builds the foundation for the hands-on steps that follow, and it highlights why a clean, well-sealed carburetor matters for a healthy lawn mower.
Safety, Tools, and Prep for Carburetor Work
Carburetor work requires a well-ventilated workspace and careful handling of fuel. Before you touch the carburetor, disable the spark plug, disconnect the battery if applicable, and drain any fuel from the carburetor bowl into a suitable container. Wear safety glasses and gloves to protect against fuel splashes and solvents. Gather the tools you’ll need and prepare a clean workspace to prevent dirt from contaminating the carb passages. This preparation minimizes contamination and makes teardown smoother. If you follow best practices, you’ll protect both yourself and your mower while you restore performance. The preparation phase is often overlooked, but it sets the tone for a successful repair and aligns with Mower Help’s guidance on safe, effective maintenance.
Cleaning, Rebuilding, and Replacing: What to Choose
Not every carburetor requires a full rebuild. In many cases, a thorough cleaning, replacement of worn diaphragms, and fresh gaskets will restore function. If the carburetor is cracked, the needle valve is severely worn, or internal passages are deeply corroded, replacement parts or a complete rebuild kit may be the wiser choice. Briggs & Stratton carburetors have many interchangeable parts across models, so verify compatibility with your specific engine. A rebuild kit typically includes diaphragms, gaskets, and needle valves, while a replacement carburetor is faster but may be less cost-effective for older mowers. Following a careful inspection, you’ll decide whether to clean, repair, or replace. Remember that clean fuel and proper air mixture are essential for efficient combustion, and even small sealing leaks can cause performance problems.
Maintenance and Preventive Care for Longevity
Once the carburetor is clean and adjusted, establish a routine to keep it performing well. Use fresh gasoline with the correct octane and avoid ethanol-heavy fuels for long-term storage. Store mower with a full tank only if stabilized fuel is used; otherwise, drain fuel before storage. Regularly replace the air filter and spark plug according to the manufacturer’s schedule, since these components influence carburetor performance. Keeping a small maintenance log can help you catch patterns early and avoid major repairs. Consistent maintenance reduces downtime and extends the life of Briggs & Stratton carburetors, aligning with recommendations from the Mower Help team.
Authority sources and references
For authoritative guidance on safe engine maintenance, consult official manuals and extension resources. The following sources provide additional context on small-engine care, safety, and maintenance practices that apply to Briggs & Stratton carburetors:
- https://extension.umn.edu/yard-and-garden-care (University of Minnesota Extension)
- https://extension.oregonstate.edu/garden (Oregon State University Extension)
- https://www.epa.gov (U.S. Environmental Protection Agency)
Tools & Materials
- Carburetor rebuild kit (Briggs & Stratton compatible)(Includes diaphragms, gaskets, and needle valve—verify model compatibility)
- Screwdrivers (Phillips #2 and flathead)(Use precision tools; avoid stripping screws)
- Carburetor cleaner spray(Choose a solvent safe for metal and diaphragms)
- Small brushes and lint-free rags(For jets, passages, and exterior surfaces)
- Plastic container for draining fuel(Keep away from flames; labeled and sealed)
- Safety gear (gloves, eye protection)(Prevent contact with fuel and cleaner)
- Gasket sealant (optional)(Use only if gasket isn’t included in your rebuild kit)
- Spark plug wrench and replacement spark plug (optional)(If you’re due for a plug, replace during maintenance)

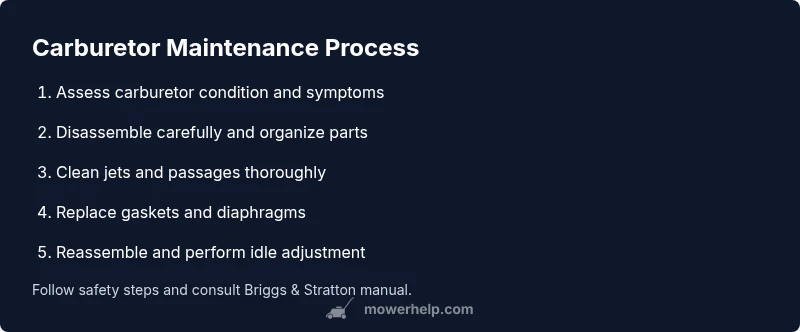

Steps
Estimated time: 45-60 minutes
- 1
Disconnect power and drain fuel
Safety comes first: remove the spark plug boot, disconnect the battery if present, and drain fuel from the bowl into a labeled container. Allow the engine to cool before handling parts to prevent burns. Keep a clean tray to catch drips and prevent contamination.
Tip: Have a second container ready to avoid spills; label it clearly. - 2
Remove air filter and access the carburetor
Remove the air filter housing to expose the carburetor. Take note of how hoses and linkages connect so reassembly is straightforward. Gently detach the air intake assembly without forcing components.
Tip: Take photos during removal to guide reassembly. - 3
Open the carburetor bowl and drain fuel
Loosen the bowl screws counterclockwise and let any remaining fuel drain into your container. Inspect the float and needle valve for signs of wear or sticking. Do not bend the float if you notice any deformation.
Tip: Use a small magnetic pick-up tool to lift tiny parts safely. - 4
Inspect needle valve, float, and jets
Check the needle valve for wear and the float for fuel saturation or damage. Remove the jets and passages for cleaning, ensuring you don’t damage delicate components. If you see varnish buildup, plan a thorough cleaning.
Tip: Keep parts organized in labeled compartments to avoid mix-ups. - 5
Clean jets and passages
Spray carburetor cleaner through each passage and jet. Use a thin wire or pipe-cleaner to gently clear obstructions. Dry parts completely before reassembly to prevent moisture-induced corrosion.
Tip: Avoid soaking diaphragms in cleaner; this can cause swelling or damage. - 6
Replace gaskets and diaphragms
Install fresh gaskets and diaphragms from your rebuild kit. Inspect the diaphragm for cracks and ensure a snug fit against the body. If you see any air leaks, reseal the joints before reassembly.
Tip: Check that the gasket surfaces are clean and free of old adhesive. - 7
Reassemble the carburetor and reconnect linkages
Reinstall the float, needle valve, jets, and bowl. Align throttle and choke linkages, making sure they move freely without binding. Tighten screws to manufacturer-recommended torque to avoid warping.
Tip: Double-check that the bowl screws are snug but not overtightened. - 8
Adjust idle and test run
Reattach the air housing, add fresh fuel, and start the engine. Adjust idle speed and mixture screws per Briggs & Stratton specifications. Listen for a stable idle and smooth throttle response during a brief test run.
Tip: If it stalls on start, recheck the float level and needle seating.
Got Questions?
What are signs that a Briggs & Stratton carburetor needs cleaning?
Common signs include hard starting, rough idle, stalling under load, and a strong fuel smell. If symptoms persist after filter and spark checks, cleaning the carburetor becomes a priority. Always inspect the diaphragm and needle valve for wear.
Look for hard starting, rough idle, or stalling. Clean the carburetor if these symptoms persist after basic checks.
Can I clean a carburetor without removing it from the mower?
Partial cleaning can be done with the carburetor installed by removing the air intake and spraying cleaner into accessible passages. However, a more thorough cleaning usually requires removal to access internal jets and diaphragms.
You can do surface cleaning with it mounted, but removing it gives you a deeper clean.
When should I replace vs rebuild the carburetor?
If the body shows cracks, the needle valve is severely worn, or internal passages are corroded beyond cleaning, replacement or a complete rebuild kit is advised. If exterior parts are intact and only gaskets/diaphragms are worn, a rebuild is typically sufficient.
If the body is cracked or parts are badly worn, replace. Otherwise, a rebuild often suffices.
How often should Briggs & Stratton carburetors be serviced?
Service intervals depend on usage and fuel quality, but a good rule is annual cleaning and inspection, especially before storage. Check gaskets, diaphragms, and seals at minimum once per season.
Aim for yearly maintenance, with a pre-storage check each season.
Are aftermarket carburetor kits trustworthy?
Quality varies by manufacturer. Choose reputable brands and verify compatibility with your Briggs & Stratton model. If you’re unsure, sticking with OEM parts or well-reviewed kits reduces risk of leaks or poor fitting.
Stick to reputable brands and verify compatibility to avoid problems.
Where can I buy Briggs & Stratton carburetor parts?
Parts are available through Briggs & Stratton authorized dealers, mower repair shops, and reputable online retailers. Ensure you have the engine model and carburetor type handy to order the correct components.
Check authorized dealers or trusted online retailers with your engine model handy.
Watch Video
The Essentials
- Diagnose issues by symptom before disassembly.
- Clean or replace diaphragms and gaskets for best results.
- Test run after adjustments and tune slowly.
- Safety first: disconnect power and vent fuel properly.
