Replacement Handle for Lawn Mower: Step-by-Step Guide
Learn how to replace a worn or broken lawn mower handle with a practical, step-by-step approach. This guide covers compatibility checks, tools, installation, safety, and testing to restore safe operation.
Replacing a lawn mower handle is a straightforward repair that restores control and safety. This guide walks you through selecting a compatible replacement, removing the damaged handle, installing the new handle, and reconnecting controls. You’ll need basic tools and about 30–60 minutes. According to Mower Help, ensuring correct fit and alignment is essential for smooth operation and safe mowing.
Why replacement handles matter
According to Mower Help, the handle is a primary control surface that bears repeated stress during mowing. A worn, bent, or corroded grip can cause uneven leverage, wobble, or accidental throttle engagement. Replacing a damaged handle restores ergonomic control, improves safety, and extends the life of your mower. In this section, we explore common failure modes—cracked grips, loose mounts, rusted brackets, and misaligned pivot points—and why upgrading to a properly fitted replacement matters for homeowners and DIY enthusiasts alike.
Types of replacement handles
Mower models use different handle configurations, so compatibility is the first concern. Common options include straight U-shaped handles, T-handles with a central crossbar, and ergonomic loop grips. When choosing a replacement, verify bolt hole spacing, overall length, cable routing, and whether the new handle supports your mower’s safety levers and interlocks. Budget-friendly universal handles exist, but they may require additional trimming or extra hardware. For most users, selecting a model that matches the original’s mounting pattern minimizes installation time and guarantees smoother operation.
Sourcing a replacement handle
Begin with your mower’s model number and year. Check manufacturer catalogs, authorized service parts, or reputable mower-supply shops for a compatible handle. Avoid low-cost generic parts that don’t match your bolt spacing or cable routing, as ill-fitting handles can affect control and safety. If you aren’t sure, bring a photo of the old handle and its mounting area to the seller. Mower Help recommends confirming fit by comparing four key dimensions: bolt pattern, handle length, cable routing, and lever standoff.
Preparation: measuring and compatibility
Before you order, measure the original handle from bolt-to-bolt, count the cable-numbered routes, and note the mounting brackets’ orientation. Check that the handle’s grip width fits your hands and that curved surfaces won’t collide with the mower body or fuel tank. Some brands use metric bolts; others employ standard sizes. Having a precise measurement sheet speeds up purchasing and prevents returns. Also record the orientation of safety levers so you can reconnect them without confusion.
Step-by-step: removing the old handle
1)Power down and secure the mower on a level surface. 2)Identify all mounting bolts and fasteners securing the handle to the mower frame. 3)Carefully detach throttle, choke, and safety cables if they attach to the handle, labeling their positions. 4)Remove bolts with the correct size wrench or socket, keeping them organized. 5)Slide the handle free from brackets, being mindful of any remaining cables. 6)Inspect surrounding brackets for wear or rust and clean as needed. Pro tip: take photos during disassembly to guide reassembly.
Step-by-step: installing the replacement handle
Begin by loosely aligning the new handle with the mounting holes. Thread in bolts by hand to prevent cross-threading, then snug each fastener in a crisscross pattern to distribute stress. Reattach any cables, ensuring they route without kinking. Check that the interlock levers clear the mower body and that the handle sits evenly against the frame. Tighten bolts to the manufacturer’s suggested torque when available, or snug firmly without over-tightening. Pro tip: run a quick dry fit before full tightening.
Connecting controls and safety interlocks
After mounting, rejoin throttle, brake, choke, and blade-interlock cables exactly as they were. A mismatch can cause sudden starts or loss of control. Ensure that the throttle return springs pull smoothly and that the blade brake engages when required. If your mower has a half-throttle or two-stage control, confirm each stage activates properly. Pro tip: label each cable end and match it to the corresponding connector on the handle.
Testing and adjustments
With the handle secured, perform a cautious in-field test in a clear, flat area. Start at a low power setting and verify control lever operation, response, and return of throttle. Check for wobble at the handle joints; if you feel play, re-tighten mounting bolts and recheck cable tension. If the grip angle irritates your wrists, adjust the handle height by repositioning the mounting brackets if available. Final checks: ensure fuel, air, and ignition lines are intact and the mower operates smoothly without unusual noises.
AUTHORITY SOURCES
- United States Department of Agriculture (USDA) - https://www.usda.gov
- Extension services university resources (example) - https://extension.illinois.edu
- Occupational Safety and Health Administration (OSHA) - https://www.osha.gov
Tools & Materials
- Replacement handle compatible with your mower model(Confirm handle length and bolt pattern before purchasing)
- Socket wrench set(Include sizes matching your mower bolts (commonly 8-12 mm))
- Allen/hex keys(Sizes often 5 mm and/or 6 mm)
- Screwdrivers (Phillips and flat)(For removing and reattaching screws)
- Pliers(Grip parts, bend if needed, and pull cables carefully)
- Torque wrench or torque-spec tool(Use if the mower model provides torque specs)
- Light lubricant (PTFE or machine oil)(Ease bolt removal and reassembly)
- Protective gloves(Safety and grip while handling metal parts)

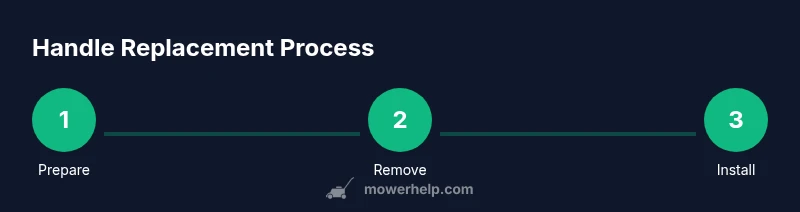

Steps
Estimated time: 45-90 minutes
- 1
Disconnect and secure
Power off the mower and place it on a stable, flat surface. Remove the spark plug boot or battery connection as applicable to prevent accidental starts. This keeps you safe while you work near moving parts.
Tip: Double-check power is disconnected before touching any metal parts. - 2
Access and identify mounting points
Inspect where the handle attaches to the mower frame. Note bolt locations and any brackets that support the handle. This helps you plan the disassembly without losing parts.
Tip: Take a photo or sketch to guide reassembly. - 3
Detach cables attached to the handle
Gently disconnect throttle, choke, and safety cables from the handle. Label ends or use a quick-draw diagram to ensure correct routing on reassembly.
Tip: Keep fasteners and cable ends in labeled containers. - 4
Remove mounting bolts
Use the appropriate socket or wrench to loosen and remove the mounting bolts. Do not strip threads—apply steady, perpendicular force and keep bolts organized.
Tip: If bolts are rusty, apply a penetrating oil and wait a few minutes. - 5
Remove the old handle
Carefully lift away the old handle from brackets. Check for any hidden fasteners or brackets that need detaching before full removal.
Tip: Watch for sharp edges that can cut the skin. - 6
Position the replacement handle
Align the new handle with mounting holes and ensure cable routing matches the old setup. Do a dry fit before threading bolts.
Tip: Loose fitting first avoids cross-threading. - 7
Attach the handle and reconnect cables
Insert bolts loosely, then reconnect throttle, brake, and safety cables to their respective ends on the new handle. Route cables smoothly without kinks.
Tip: Crisscross tightening to prevent stress on any one bolt. - 8
Tighten, test, and adjust
Tighten all fasteners to the proper torque if specified. Reattach the spark plug/battery, start the mower in a safe area, and verify lever operation and interlocks.
Tip: If you notice looseness, recheck bolts and cable tension.
Got Questions?
Do I need a replacement handle, or can I repair the existing one?
If the handle is bent, cracked, or severely corroded, replacement is safer and more reliable than a repair. Damaged mounting points can compromise control and safety.
If the handle is bent or cracked, replacing it is safer than trying to repair it.
How do I know a replacement handle is compatible with my mower?
Match the mounting bolt pattern, overall handle length, and cable routing to your original setup. Check your mower’s model number and refer to the parts catalog or supplier for exact fit.
Check bolt pattern, length, and cable routing to ensure a proper fit.
Are universal handles reliable for lawn mowers?
Universal handles can work, but they often require careful measurement and potential modifications. When in doubt, select a model designed for your mower brand.
Universal handles can work but may need adjustments to fit.
What safety steps should I take before starting the replacement?
Always disconnect power: remove the spark plug boot or battery, drain fuel if necessary, and wear eye protection and gloves to prevent injuries.
Disconnect power, drain fuel if needed, and wear protective gear.
How long does installation typically take?
Most homeowners complete the replacement in 30–90 minutes, depending on mower model and tool availability.
Most installations take under two hours with the right tools.
Watch Video
The Essentials
- Choose a compatible replacement handle with matching bolt pattern and routing.
- Label cables and take photos to simplify reassembly.
- Tighten fasteners securely and test in a safe area before use.
