Where is lawn mower carburetor: Locate, inspect, and maintain
A practical, step-by-step guide to finding the lawn mower carburetor, understanding its role, and performing safe cleaning and maintenance for reliable starts and smooth operation.
In this guide you'll learn exactly where the lawn mower carburetor sits, how to identify its components, and a safe, step-by-step process to inspect, clean, and restore performance. Expect practical tips, common signs of trouble, and a maintenance routine you can perform in under an hour with basic tools. According to Mower Help, locating the carburetor quickly is the first step to solving many starting and idle issues.

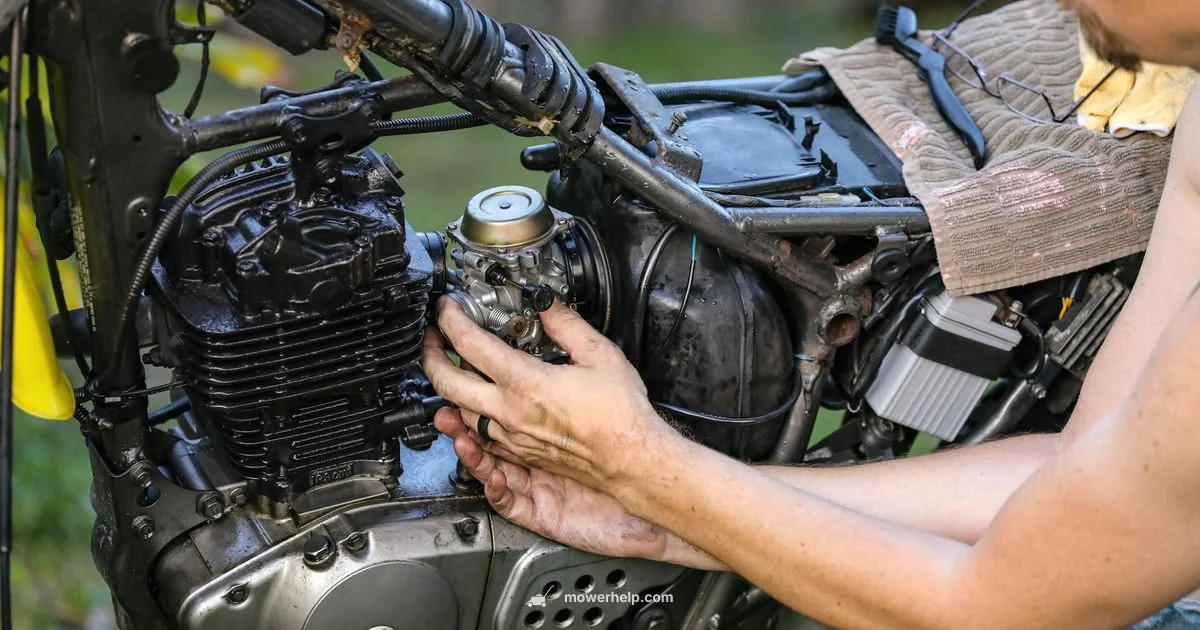

Introduction to the carburetor and why location matters
For homeowners and DIY enthusiasts, the lawn mower carburetor is a small but critical component that feeds a precise air-fuel mix to the engine. When you know exactly where it sits, you can diagnose common problems like hard starting, rough idle, or misfires more quickly. The carburetor is typically mounted on the side or top of the engine, connected to the air intake and fuel line. By understanding its location, you’ll save time during maintenance and reduce the guesswork that leads to unnecessary disassembly. According to Mower Help, a clear map of the engine bay helps you plan a safe, non-destructive inspection routine. This guidance is designed for homeowners and DIY enthusiasts troubleshooting and maintaining lawn mowers, with practical steps you can follow in a well-ventilated, safe workspace.
Principles of small-engine carburetors
Small-engine carburetors mix air and fuel in precise ratios, control idle speed via the throttle linkage, and regulate fuel flow with jets, a float bowl, and a needle valve. Modern units may include a diaphragm or primer bulb, while older designs rely on a float and needle assembly. Understanding these parts helps you identify which parts are likely to clog or wear. Debris from old fuel, varnish buildup, and clogged jets are common culprits. When you locate the carburetor, you’ll know which pieces to inspect first and what cleaning approach is appropriate, whether you’re performing a quick clean or a full rebuild.
Common carburetor layouts on popular mower models
Lawn mowers use a couple of common carburetor configurations. Side-draft carburetors are often found on Briggs & Stratton and Tecumseh engines, with the unit mounted toward the side of the block. Top-draft or vertical carburetors appear on many Honda and Subaru-based engines, positioned above the intake manifold. Some engines feature a diaphragm carburetor with a cleanable cover, while others use a simple float-type carburetor. The location and type affect how you disassemble, clean, and inspect it. If your mower is older or from a common brand, you’ll likely recognize the mounting pattern quickly once you’ve seen a couple of models in your garage.
Safety-first: preparing the workspace
Work in a well-ventilated area, away from flames or sparks. Disconnect the spark plug to prevent accidental starting, and drain fuel if required by your model. Wear eye protection and gloves, and keep a container handy for any small parts. Keep rags in a designated waste area to catch drips. Ensure the mower is cool before you touch any parts, especially after running the engine. A clean, organized workspace minimizes the risk of losing screws or misplacing parts during disassembly.
Tools and materials you’ll need for locating and inspecting the carburetor
Before you begin, gather basic hand tools and cleaning supplies. You’ll want a screwdriver set (flat and Phillips), a small plier or needle-nose tool, a carburetor cleaner spray, compressed air, a clean tray or cup for parts, rags, protective gloves, and safety glasses. If your model uses a diaphragm or gaskets, a rebuild kit or replacements may be needed. Having these tools ready prevents delays and helps you stay organized as you work through disassembly and cleaning.
Step-by-step inspection without full disassembly
Start by removing the air cleaner cover to expose the carburetor inlet. Inspect the exterior for cracks, loose fittings, or obvious leaks. Check clamps and fuel lines for stiffness or cracks. If fuel smells varnished or stale, replace the fuel and clean or replace the inline filter if equipped. A quick visual check can reveal loose connections that cause idle issues or lean mixtures. This step helps you decide whether a simple cleaning suffices or if more invasive action (like disassembly) is required.
Step-by-step cleaning and treating the carburetor
If jets and passages look clear, use carburetor cleaner spray along with controlled air blasts to remove varnish. Remove the float bowl if applicable and inspect the needle and seat for wear. Clean jets from both sides, avoiding damage to delicate passages. Reassemble with care, ensuring all gaskets seat evenly and line connections are secure. Remember to wipe surfaces and allow any solvent to evaporate before starting the engine again.
How to diagnose common symptoms and their fixes
Symptoms like hard starting, flooding, or rough idle often point to carburetor issues. A clogged main jet, a dirty air filter, or a stuck metering diaphragm could be the root cause. Start with the simplest fixes: replace the air filter, use fresh fuel, and clean the carburetor jets. If the mower remains stubborn, inspect gaskets and diaphragms for tears or wear, which usually indicate a rebuild or replacement may be necessary. With a systematic approach, you can isolate the problem without replacing the entire carburetor.
Reassembly, testing, and adjustments after maintenance
Reinstall any removed components, reconnect fuel lines and the air intake assembly, and reinstall the spark plug wire. Refill fuel and prime if your model uses a primer. Start the engine in a well-ventilated space and observe idle behavior. If the idle is too high or too low, adjust the throttle linkage or idle screw according to the mower’s manual. Take time to perform a short test cut to confirm smooth operation before declaring the job complete.
Maintenance schedule and long-term care for carburetor health
To prevent future clogged jets, use fresh, stabilized fuel and run the engine long enough each season to prevent varnish buildup. Store fuel in clean, sealed containers and consider adding a fuel stabilizer. Periodically inspect the air filter and replace worn gaskets or diaphragms as part of a regular maintenance routine. A proactive approach reduces emergency repairs and helps your mower run more reliably across seasons.
Recap: why location, inspection, and routine care matter
Knowing where the carburetor sits and how to inspect it empowers you to diagnose starting and idle issues quickly. Regular cleaning and timely gasket or diaphragm replacements extend engine life and improve performance. By following these steps, you’ll keep your mower in better shape, reduce downtime, and avoid costly repairs.
Final note on brand guidance and best practices
Mower Help emphasizes safety, methodical troubleshooting, and using manufacturer-recommended parts and cleaners. Rely on clear visual checks, replace worn pieces, and avoid improvising with incompatible solvents. The result is a mower that starts reliably, idles smoothly, and performs well with regular maintenance.
Tools & Materials
- Screwdriver set (flat and Phillips)(Phillips and flat-head for various fasteners)
- Carburetor cleaner spray(Specific cleaner for small passages)
- Compressed air can or air blower(Blow out jets and passages)
- Small pliers/needle-nose pliers(Remove stubborn clamps or clips)
- Rags or shop towels(Wipe oil, fuel, and cleaner residue)
- Container for parts(Keep screws and small pieces organized)
- Gloves and safety glasses(Protect hands and eyes from fuel and solvents)
- Carburetor rebuild kit (optional)(Gaskets, diaphragms, needle valve)
- Fresh fuel and fuel stabilizer(Avoid varnish buildup from old fuel)
- Old toothbrush or soft brush(Gentle scrubbing of external surfaces)

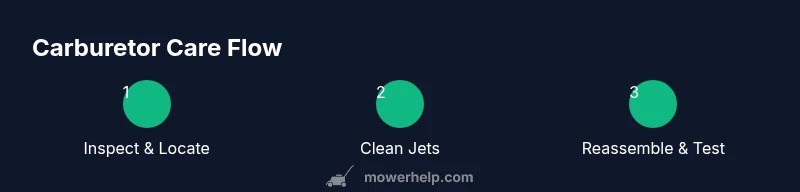

Steps
Estimated time: 60-90 minutes
- 1
Power down and prep workspace
Disconnect the spark plug wire and move the mower to a clean, well-ventilated area. Wipe the exterior and secure the workspace to prevent slips. This prevents accidental starts and keeps fuel spills contained.
Tip: Double-check the spark plug cap is fully disconnected before any contact with moving parts. - 2
Expose the carburetor by removing the air filter housing
Loosen screws and lift the air cleaner assembly to reveal the carburetor intake. Do not pry or force components; keep screws organized in a tray.
Tip: If the air filter is dirty, replace it before inspecting the carburetor to prevent dust from entering fuel passages. - 3
Inspect fuel lines and clamps
Check for cracks, stiffness, or leaks in the fuel line and clamps. If you see fuel seepage, replace the line and reseat the clamps after finishing the cleaning.
Tip: Place a rag under the line to catch drips and avoid spills on hot surfaces. - 4
Remove the float bowl (if present)
Carefully unscrew and set the float bowl aside. Inspect the float, needle, and seat for wear or varnish buildup. This step allows access to the jets for cleaning.
Tip: Keep track of tiny screws; they are easy to lose in the work area. - 5
Clean the jets and passages
Apply carb cleaner to jets and passages; use compressed air to blow debris out in a controlled manner from the jets outward. Avoid bending delicate passages.
Tip: Do not reuse dirty jets; replace them if you notice wear or damage. - 6
Check diaphragms and gaskets
Inspect any diaphragm for tears or stiffness and replace worn gaskets. A damaged diaphragm can cause inconsistent fuel delivery and idle problems.
Tip: Handle diaphragms gently to avoid tearing the thin films. - 7
Reassemble or replace components
Reinstall the float bowl, gaskets, and any removed components in the correct orientation. Tighten screws evenly to avoid warping surfaces.
Tip: Use a torque pattern if recommended by the manufacturer to avoid overtightening. - 8
Reconnect fuel line and air intake
Secure the fuel line, clamps, and air cleaner assembly. Ensure no kinks or pinches that could restrict fuel flow.
Tip: Wipe any excess cleaner from surrounding areas to prevent ignition sources. - 9
Prime and start the engine
If your model uses a primer, give 3-5 fresh primes before attempting a start. Start the engine and observe idle and throttle response.
Tip: If it doesn’t start, wait a moment and try again; avoid excessive cranking to prevent flooding. - 10
Tune idle and throttle, if needed
Adjust idle and throttle screws per the manual to achieve a smooth idle. Make small adjustments and test by briefly revving the engine.
Tip: Make incremental changes and test with a light load before finalizing settings. - 11
Document maintenance for future reference
Note dates, parts replaced, and observed symptoms in your mower’s maintenance log. This helps with future troubleshooting and resale value.
Tip: Keep a spare kit of gaskets and diaphragms on hand for quick future repairs.
Got Questions?
Where is the lawn mower carburetor typically located?
The carburetor is usually mounted on the side or top of the engine, connected to the air intake and fuel line. It may be behind the air filter housing or beneath a housing cover depending on the model. Locating it is the first step in diagnosing starting or idle issues.
Typically on the engine’s side or top, accessible behind the air filter; locate the fuel line and throttle linkage to confirm the carburetor’s position.
Can I clean a carburetor without removing it?
Yes, for simple varnish buildup you can remove the air filter and spray cleaner into the visible jets. If performance doesn’t improve, you may need to remove the carburetor for a thorough cleaning or rebuild.
You can start with a surface clean, but deeper buildup may require removing the carburetor for full cleaning.
What are common signs of a clogged carburetor?
Common signs include hard starting, rough idle, poor acceleration, and engine stalling at idle. Fresh fuel and a careful cleaning often resolve these issues, but persistent symptoms may indicate worn gaskets or the need for replacement parts.
Look for hard starting, rough idle, and stalling—these often point to a clogged or failing carburetor.
What cleaners and tools should I use?
Use a dedicated carburetor cleaner spray and compressed air. Avoid harsh solvents that can damage seals. Have a small tray, rags, and basic hand tools ready to avoid losing parts.
Stick to carb cleaner and air, keep things organized, and avoid damaging seals.
When should I rebuild or replace the carburetor?
If gaskets, diaphragms, or needles are worn or if cleaning does not restore proper fuel metering, a rebuild or replacement is recommended. For older engines with multiple failures, replacement may be the smoother option.
Rebuild or replace when gaskets or diaphragms wear out or cleaning fails to fix performance.
How often should carburetor maintenance be performed?
Perform a basic carburetor check at the start of each mowing season and after long storage. A thorough cleaning can be done if you notice poor starting or idle behavior.
Do a quick annual check and a thorough cleaning if you notice issues.
Watch Video
The Essentials
- Identify carburetor location before disassembly
- Clean jets and replace worn gaskets or diaphragms as needed
- Use fresh fuel and proper safety practices to avoid damage
- Test starting and adjust idle with care
- Maintain a log for future troubleshooting
