How to Tell If Lawn Mower Starter Is Bad: Quick Diagnosis and Fixes
Learn how to tell if lawn mower starter is bad with a clear, step-by-step guide. Identify symptoms, run safe tests, and know when to replace the starter for reliable mowing.
The most common sign your lawn mower starter is bad is when the engine won’t turn over despite a charged battery and fresh fuel. You may hear clicking, or no action at all when you crank. Start with a simple ignition test, inspect wiring for loose connections, and check the solenoid and starter motor for obvious damage.
What the starter does and why failure happens
The starter is the small electric motor and solenoid that engages the flywheel to turn the engine over when you start a lawn mower. If the starter wears out, or if the solenoid sticks, the engine won’t spin even with a healthy battery and fresh fuel. The most common causes are worn brushes, burnt windings, a stuck solenoid, or loose/corroded connections. External factors like a faulty safety switch or damaged wiring can mimic starter problems too. If you’re wondering how to tell if lawn mower starter is bad, start with the basics: listen for a click, test voltage at the starter while cranking, and inspect wiring for damage. A reliable diagnosis comes from ruling out simpler issues first (battery, connections, safety switches) before assuming the starter itself is at fault, which saves time and money.
Signs your starting circuit is failing
The most obvious symptoms include: no crank when you engage the starter, a distinct clicking sound, the engine spinning slowly, or a burning smell near the starter area. These signs don’t always mean the starter is bad; battery or wiring issues can produce similar behavior. According to Mower Help, performing a quick battery check first and then a targeted starter check increases accuracy. If symptoms persist after basic tests, you’ll want to inspect the solenoid and starter motor for signs of wear or damage.
Quick checks you can safely perform
Safety first: disconnect the spark plug wire and wear eye protection. Start with the battery: inspect terminals for corrosion, ensure cables are tight, and test whether the battery holds a charge with a multimeter or load tester. Move to the starter area: examine the solenoid connections for corrosion, check for burnt or melted insulation, and make sure the wires aren’t cracked or pinched. Clean or replace corroded connections, reassemble, and test the system. If you still don’t get a crank, the problem likely lies with the starter or its control circuit.
Diagnostic flow: turning symptoms into fixes
A practical diagnostic path begins with the symptom and moves through a ranked list of potential causes. If the engine won’t crank, start by verifying a good battery and clean connections (high likelihood). If voltage reaches the starter but there’s no spin, test the solenoid and the starter motor (medium likelihood). If the starter fails to receive a signal or the safety switch is tripping, address the control circuit (low likelihood). This flow helps you avoid unnecessary starter removal and speeds up repair.
Step-by-step overview (high level) for testing the Starter vs. Solenoid
First, test the battery and ground connection. Then verify that power reaches the starter when you turn the key or pull the cord. If power is present but the engine won’t turn, test or bench-run the starter with a known-good battery to confirm operation. If it’s dead, replace the starter or solenoid as needed and re-test the system after reassembly. Professional help is recommended if you’re unsure about electrical safety or if you have a model with integrated safety circuits.
Safety, wiring, and common mistakes
Never work with a running engine or near moving blades. Always disconnect the ground battery cable before inspecting electrical components. Common mistakes include ignoring corrosion on terminals, forcing connectors, or replacing parts without confirming the root cause. Cleaning connections and securing loose wires reduces false positives. If you’re uncertain about the model’s wiring harness, consult the mower’s manual or a professional.
Maintenance and prevention tips
Regular maintenance reduces starter failures. Keep the battery terminals clean and tight, inspect the starter and solenoid for wear during seasonal servicing, and replace damaged wiring promptly. Store the mower in a dry area to prevent moisture-related corrosion. A quick post-start check — listening for a clean engage with no grinding — can catch issues before they become full failures.
When to call a pro and what to expect
If tests reveal a bad starter or persistent control circuit problems, it’s wise to call a professional. A technician can confirm whether you need a replacement starter, a solenoid, or a wiring harness repair. Expect a diagnostic charge plus the cost of any replacement parts and installation. The Mower Help team emphasizes safety and ensuring compatible parts for your mower model.

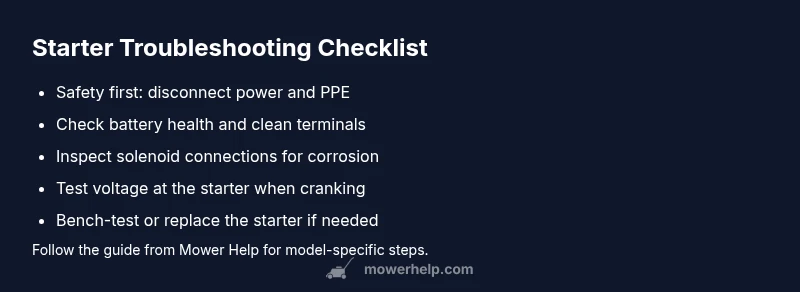

Steps
Estimated time: 60-90 minutes
- 1
Disconnect power and safety grounds
Turn off the mower, remove the spark plug wire, and disconnect the battery ground to prevent shocks. This is your first safety step before any inspection.
Tip: Always double-check the battery ground before touching any wires. - 2
Inspect battery and terminals
Look for corrosion, looseness, or damage. Clean terminals with a wire brush and snug up clamps before re-testing.
Tip: If corrosion is heavy, consider replacing the battery cables too. - 3
Check solenoid connections
Trace wires from the solenoid to the battery and ignition switch. Look for cracked insulation, loose connectors, or burnt areas and repair as needed.
Tip: A loose ground can mimic a bad starter; ensure ground is solid. - 4
Test for voltage at the starter
With the switch engaged, measure voltage at the starter terminals. If power is present but the starter doesn’t engage, the starter or solenoid may be bad.
Tip: Use a helper to crank while you test to get real-time readings. - 5
Bench-test the starter motor
Remove the starter and place on a non-conductive surface. Connect it to a known-good 12V source to verify operation.
Tip: If you’re unsure about bench-testing, skip to replacement. - 6
Inspect the flywheel and engagement gears
Ensure the flywheel teeth aren’t damaged and that the starter gear engages smoothly without grinding.
Tip: A damaged flywheel may require milling or replacement. - 7
Replace or repair as needed
If the starter or solenoid tests fail, replace the faulty part with a compatible unit. Reconnect everything in reverse order.
Tip: Keep track of connectors and orientation to avoid miswiring. - 8
Final test and reassembly
Reassemble, reconnect the battery, and attempt a full start. Confirm smooth engagement without unusual noises.
Tip: Run a quick test under load to ensure reliability.
Diagnosis: Engine won't crank or spins slowly when attempting to start
Possible Causes
- highBad starter or solenoid
- highWeak or dead battery
- mediumDirty or loose electrical connections
- mediumFaulty safety switch or wiring fault
Fixes
- easyTest battery voltage and charge if needed; clean and tighten terminals
- mediumInspect and, if needed, replace the solenoid; bridge connections if corroded
- mediumBench-test or replace the starter motor; verify flywheel engages freely
- hardCheck safety switches and related wiring; repair or replace damaged harnesses
Got Questions?
What are the most common signs that a lawn mower starter is bad?
The engine won’t crank, you hear a click, or the starter spins without engaging. A burnt smell or visible damage near the starter also indicates trouble. Always rule out a weak battery first.
Common signs are no crank, a click, or spinning without engagement; check the battery first.
Can a weak battery mimic starter failure?
Yes. A weak or discharged battery can prevent the starter from engaging even if the starter is fine. Test voltage and recharge or replace the battery as needed before replacing the starter.
Yes, a weak battery can mimic starter failure; test voltage and recharge or replace accordingly.
Is it safe to test the starter at home?
You can perform basic checks like inspecting terminals and testing voltage, but avoid high-current bench tests unless you’re confident. Wear eye protection and disconnect power before touching wiring.
You can do basic checks safely at home, but avoid high-current tests unless you’re confident.
How long does a lawn mower starter typically last?
Starter lifespan varies by mower model and use, but many starters last several seasons with proper maintenance. If you notice repeated failures after minimal use, a replacement is often the best option.
Starter life varies, but many last multiple seasons with proper care. Consider replacement if failures persist.
Should I replace the solenoid or the whole starter?
If the solenoid shows no response while the battery is healthy, replacing the solenoid can fix many issues. If voltage reaches the starter but there’s no engagement, you’ll likely need the starter motor replacement.
If the solenoid is bad, swap it first; otherwise, replace the starter motor.
What’s the best way to prevent starter failures?
Maintain clean connections, keep batteries charged, and inspect wiring during seasonal service. Store the mower in dry conditions and replace worn components before they fail.
Keep connections clean, charge the battery regularly, and inspect wiring to prevent failures.
Watch Video
The Essentials
- Identify the symptom and test the battery first.
- Power reaching the starter but no engagement = likely starter/solenoid issue.
- Safety switches and wiring can mimic starter failure and must be checked.
- Replace the starter or solenoid only after confirming failure with tests.
- Consult a pro if you’re unsure about electrical safety or model-specific wiring.
