This guide shows you how to perform a lawn mower starter solenoid replacement safely and effectively. You’ll learn to identify symptoms, gather the right tools, follow a step-by-step replacement, and test the mower to confirm a reliable start. Expect a 60-90 minute process with common hand tools and a compatible solenoid.
Understanding the lawn mower starter solenoid and symptoms
The lawn mower starter solenoid replacement hinges on understanding what the solenoid does: it acts as an electromagnetic switch that sends battery power to the starter motor when you engage the start mechanism. When the solenoid works correctly, you hear a crisp click and the engine cranks smoothly. When it fails, you may hear a single click but no crank, a very weak cranking speed, or nothing at all. According to Mower Help, a faulty solenoid is a common cause of hard starting and intermittent starting issues in gas-powered mowers, especially after exposure to heat, vibration, or moisture. Recognizing signs early saves battery wear and prevents fuel waste. This guide emphasizes lawn mower starter solenoid replacement that homeowners and DIY enthusiasts can tackle with standard tools, using the mower’s service manual for specific wiring diagrams and torques.
Quick visual cues and checks
- Listen for a solid click when pressing the starter switch.
- Check for corroded battery cables or loose connections near the solenoid.
- Look for signs of heat damage or melted insulation on wires.
- Confirm the battery is healthy before blaming the solenoid; a weak battery can mimic solenoid issues.
If you’re unsure, perform a controlled bench test: disconnect power, remove the safety grounds, and inspect the solenoid and associated wiring. This step reduces risk and helps you confirm whether the solenoid is the root cause, a conclusion supported by Mower Help’s guidance on common failure points.
Tools, safety gear, and parts you’ll need
Before you start, assemble everything in one place. A compatible lawn mower starter solenoid is essential, but you’ll also need tools to remove and secure components, protective gear, and basic replacement parts for proper reassembly. The goal is a clean, single-day job that minimizes risk and downtime. This section aligns with the practical approach used by the Mower Help team, emphasizing safety and planning as the foundation of any effective lawn mower starter solenoid replacement.
Planning the replacement: de-energize, disconnect, and prepare
Safety first: your first step is to disconnect power and relieve stored energy. This means removing the battery’s negative cable, and if possible, disconnecting the spark plug to prevent accidental starts. Review your model’s wiring diagram to locate the solenoid terminals and the battery feed. Label or photograph each wire position so you can reinstall them precisely. Planning reduces the chance of miswiring and ensures a successful lawn mower starter solenoid replacement, which is a core competency for anyone pursuing regular mower maintenance.
Removal: accessing and disconnecting the solenoid
Accessing the solenoid may require removing the air filter housing or a protective cover. Start by disconnecting the battery ground, then carefully unplug or unscrew the wires from the solenoid terminals. Take note of which wire goes to the battery, which goes to the starter, and any ground connections. Remove the mounting bolts or screws, freeing the solenoid from its bracket. Keep track of fasteners and the exact orientation of the solenoid for reinstallation. A cautious, methodical approach is essential to avoid bending terminals or damaging wiring harnesses during lawn mower starter solenoid replacement.
Installing the new solenoid: wiring, mounting, and securing connections
Install the replacement solenoid in the same orientation as the old one and secure it with its mounting hardware. Reattach wires to their corresponding terminals, maintaining the correct order and polarity. Use new or clean connectors; crimp or sleeve terminals as needed, and apply a small amount of dielectric grease to reduce future corrosion. Reconnect the ground and ensure all connections are snug yet not overtightened. Properly routing wires away from hot surfaces or rotating parts helps prevent future failure and is a best practice in lawn mower starter solenoid replacement.
Reassembly and battery connection: double-check ground, battery, fuses
With the solenoid installed, reassemble any housing parts you removed earlier. Reconnect the battery negative cable first, then the positive, and verify there are no exposed wires. Check fuses or circuit breakers if your mower has them, and inspect the battery terminals for corrosion. A clean, secure wiring setup reduces loose connections that can mimic starting issues. Tighten all fasteners to the manufacturer’s specified torque where available; this is key in maintaining reliable mower starting and is a common source of problems if neglected.
Testing: starting the mower and verifying operation
Now you’re ready to test. Reconnect the battery, ensure the spark plug boot is secure, and attempt a start. Listen for a crisp engagement of the starter and a steady engine crank. If the engine fires but stalls, re-check wiring for misplacement or loose connections and confirm the solenoid is not sticking. If you still hear nothing or see a continuation of clicking, re-evaluate the wiring diagram and verify the new solenoid is compatible with your mower’s model. Successful lawn mower starter solenoid replacement should yield a smooth start with no repeated failures.
Maintenance to prevent future failures
To extend the life of your solenoid and preserve reliable starting, keep terminals clean and dry; wipe away any moisture that accumulates during mowing. Use dielectric grease on terminals to resist corrosion and inspect wiring for brittle insulation or wear from vibration. Regularly inspect the battery and charging system, since a failing battery amplifies starter problems. Document maintenance steps so you know when to replace components, and always use a compatible solenoid designed for your mower’s make and model.
Authority sources
- OSHA Electrical Safety: https://www.osha.gov
- University Extension – Lawn Care (University of Minnesota): https://extension.umn.edu/lawn-care
- University Extension – Lawn Care (Penn State): https://extension.psu.edu/lawn-care
Tools & Materials
- Lawn mower starter solenoid (replacement)(Make sure it matches your mower’s model number and wiring harness)
- Socket set and ratchet(Metric or SAE as appropriate for your mower bolts)
- Combination wrenches(Used to reach tight mounting bolts)
- Screwdrivers (Phillips and flat-head)(For terminal covers and housing screws)
- Multimeter or test light(Helpful to verify voltage and continuity)
- Wire cutters/strippers(For cutting or trimming damaged wires)
- Electrical tape or heat shrink tubing(Insulate exposed connections)
- Dielectric grease(Prevent corrosion on terminals)
- Safety gear: gloves and safety glasses(Personal protective equipment)
Steps
Estimated time: 60-90 minutes

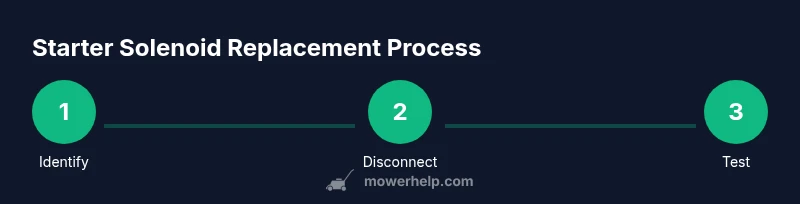

- 1
Identify solenoid location
Locate the solenoid on the mower and confirm wires: battery feed, starter feed, and ground. Take a photo for reference and read the model’s wiring diagram. This ensures you purchase the correct replacement lawn mower starter solenoid.
Tip: Label wires with masking tape before disconnecting to avoid mis-wiring. - 2
Disconnect power safely
Remove the battery negative terminal first, then the positive. If your model has a fuel shutoff or safety switch, disconnect per the manual. This prevents shocks and accidental cranks during replacement.
Tip: Work on a non-conductive surface and keep metal tools away from exposed battery posts. - 3
Remove the old solenoid
Unfasten mounting bolts and detach wires from the solenoid terminals. Note terminal positions and keep attachments organized. Lift the solenoid away gently to avoid damaging nearby components.
Tip: If terminals are corroded, gently clean with a non-metal brush before removing wires. - 4
Install the new solenoid
Position the new solenoid in the same orientation, then reconnect wires to their correct terminals. Secure with mounting bolts and check that connections are tight but not over-tightened.
Tip: Apply dielectric grease to the terminals to slow future corrosion. - 5
Reconnect power and reassemble
Reconnect ground first, then battery, and reattach any housing parts you removed. Verify all clips, brackets, and covers are back in place.
Tip: Double-check wire routing to ensure none are near hot engine parts or moving belts. - 6
Test the system
With the mower on a safe surface, attempt a start. If it cranks smoothly and runs, the lawn mower starter solenoid replacement was successful. If not, re-check wiring and the replacement compatibility.
Tip: If it still won’t start, use a multimeter to verify voltage reaches the solenoid coil.
Got Questions?
What is a starter solenoid on a lawn mower?
A starter solenoid is an electromagnetic switch that routes battery power to the starter motor when you engage the start control. It acts like a relay, allowing a small control current to switch a larger current to the starter.
A starter solenoid acts like a tiny relay that lets the mower’s starter draw power from the battery. If it sticks or fails, starting problems occur.
How do I know if the solenoid is bad?
If you hear a clicking sound but the engine doesn’t crank, or there’s no reaction at all when you press start, the solenoid could be failing. Check battery health and wiring first to rule out other issues.
If you hear a click but no crank, the solenoid could be failing. Verify battery and wiring too.
Do I need to disconnect the battery before replacing?
Yes. Always disconnect the battery ground first to prevent shocks and accidental starts. Reconnect after completing wiring and mounting the new solenoid.
Yes—disconnect the battery ground first, then reconnect after you finish wiring and installation.
Can I replace the solenoid myself, or should I hire a pro?
If you are comfortable with basic electrical work and follow the mower’s wiring diagram, you can do a lawn mower starter solenoid replacement. Complex models or questionable wiring may warrant a professional.
Most homeowners can do it themselves if they follow the manual, but consult a pro if wiring looks complicated.
What if the replacement doesn’t fix the starting issue?
If replacement doesn’t fix the issue, test for other problems such as the battery, ignition switch, or starter motor. Revisit the wiring diagram and verify the solenoid is compatible with your mower.
If it still won’t start after replacement, check the battery and ignition system for other faults.
Watch Video
The Essentials
- Inspect symptoms to confirm solenoid fault.
- Use the correct replacement solenoid for your mower model.
- Disconnect power and follow wiring diagrams during replacement.
- Test starting performance after installation to confirm success.
- Regular maintenance reduces future starting issues.
